Name: Cartesy 2 Wheeled Motorcycle Chassis Dynamometer with 320km/h Speed and 160kW Eddy Current Power
Brand: Cartesy Diagnosis Technology CO.,Ltd
SKU: CTMTDCG-3W
Price: 499.00 USD
Availability: InStock

Home > products > Automobile Chassis Dynamometer >

Cartesy 2 Wheeled Motorcycle Chassis Dynamometer with 320km/h Speed and 160kW Eddy Current Power

320km/h Motorcycle Chassis Dynamometer

160kW Motorcycle Dyno Machine

Eddy Current Chassis Dynamometer

Place of Origin:

zhongshan,Chain

Brand Name:

Cartesykj

Certification:

Model Number:

CTMTDCG-3W

Request A Quote

Product Details

Maxpowercapacity:

Up To 300 HP

Dimensions:

Varies By Model, Typically Around 2m X 1m

Compatibility:

Suitable For Various Motorcycle Types And Sizes

Wheel Distance Applicable:

500（inner Width）/1500（outer Width）

Controlsystem:

Computer Controlled With Software Interface

Motor Power:

10kw

Type:

Chassis Dynamometer

Powersupply:

220V/380V AC

Clamping Method:

Pneumatic Or Manual

Safetyfeatures:

Emergency Stop, Overload Protection

Dataacquisitionsystem:

Real-time Data Logging And Analysis

Application:

Motorcycle Performance Testing

Maxspeed:

Up To 300 Km/h

Productname:

Motorcycle Chassis Dynamometer

Coolingsystem:

Integrated Cooling Fan Or Water Cooling

Highlight:

320km/h Motorcycle Chassis Dynamometer

160kW Motorcycle Dyno Machine

Eddy Current Chassis Dynamometer

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Price

negotiation

Packaging Details

Wooden package

Delivery Time

20-25 working days

Payment Terms

L/C,T/T

Supply Ability

300 Set/Sets per Month

Carteskj 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments

Get Best Price

video

Cartesykj 4WD vehicle Chassis Dynamometer Machine Horse Power Machine Automotive Power Performance tester

Get Best Price

video

Cartesykj 4WD Horse Power Machine Automotive Power Performance And Chassis Dynamometer Machine 2000hp 2 eddy currents adjustable wheelbase in Uganda

Get Best Price

video

Chassis Dynamometer For 2 Wheels Motorcycle Single Roller CTMTDCG-3W

Get Best Price

Contact Now

Product Description

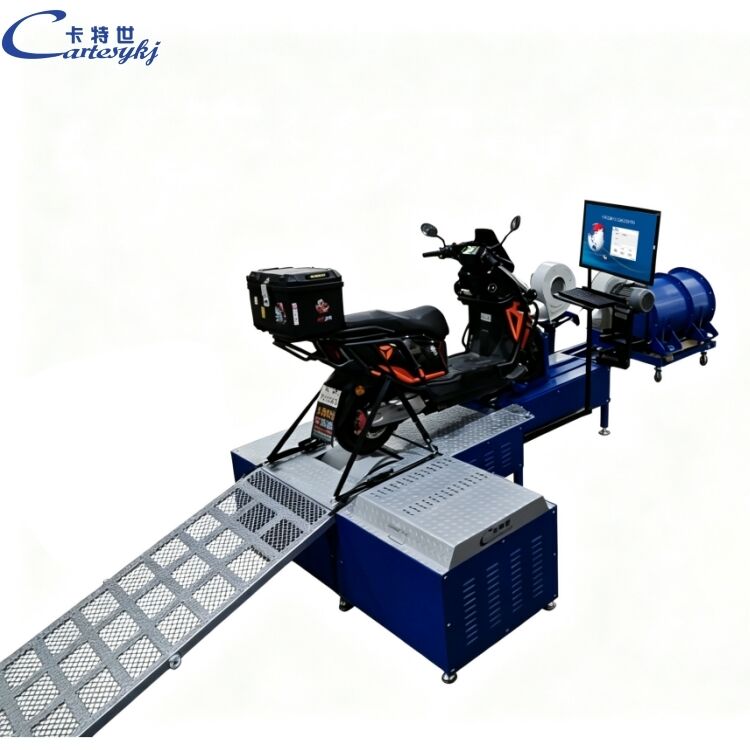

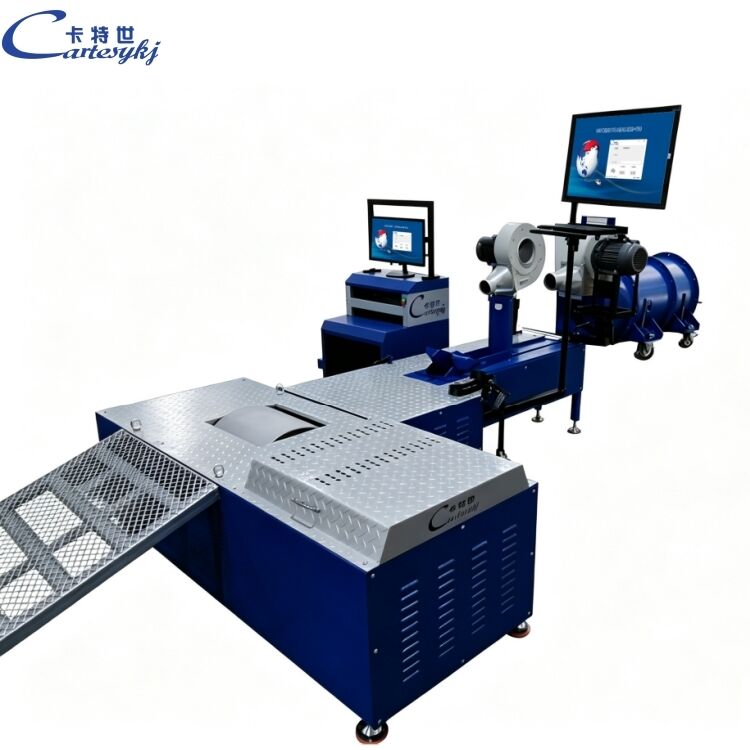

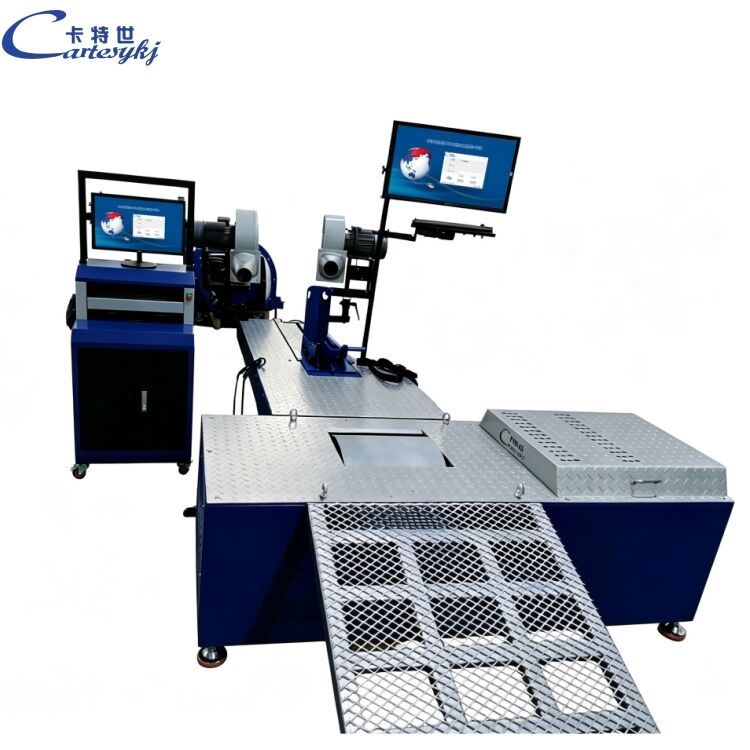

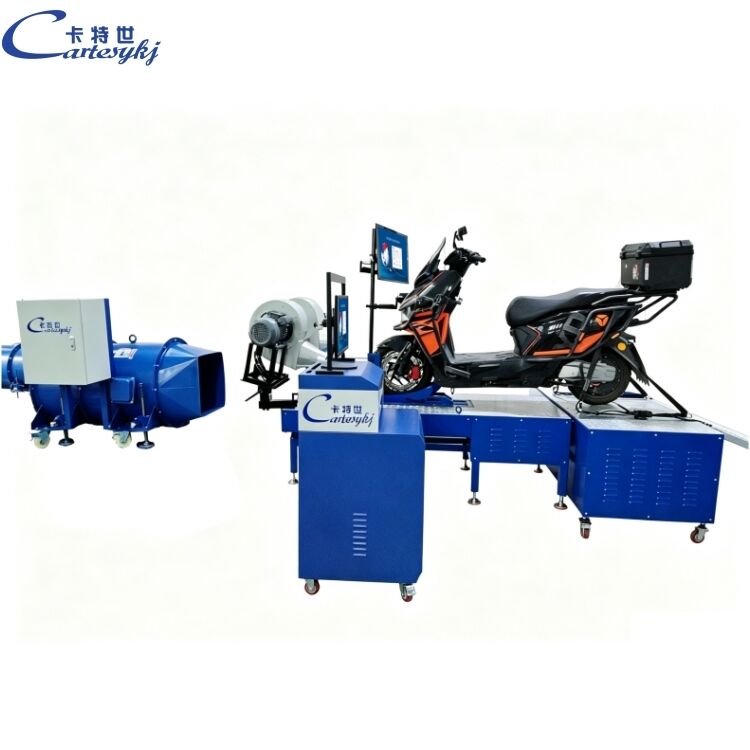

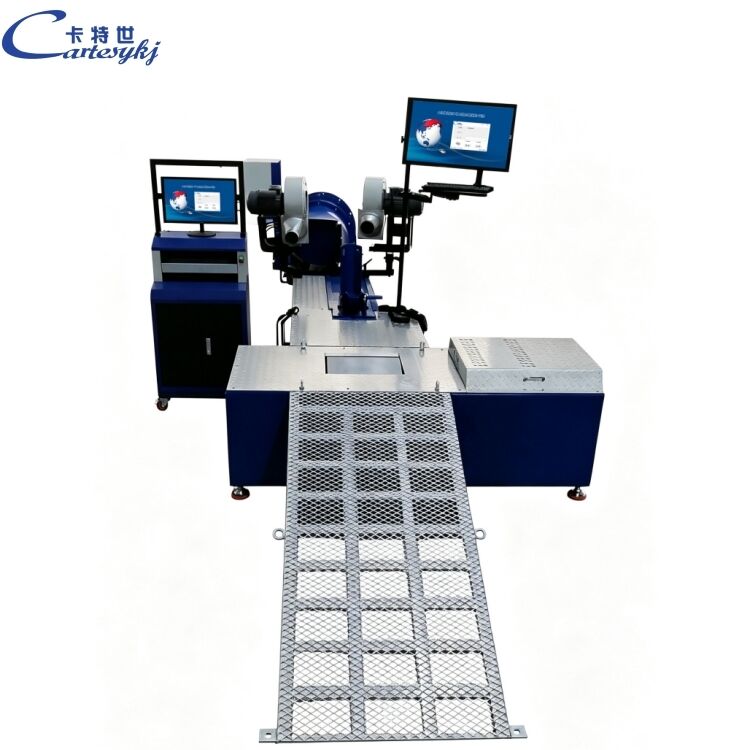

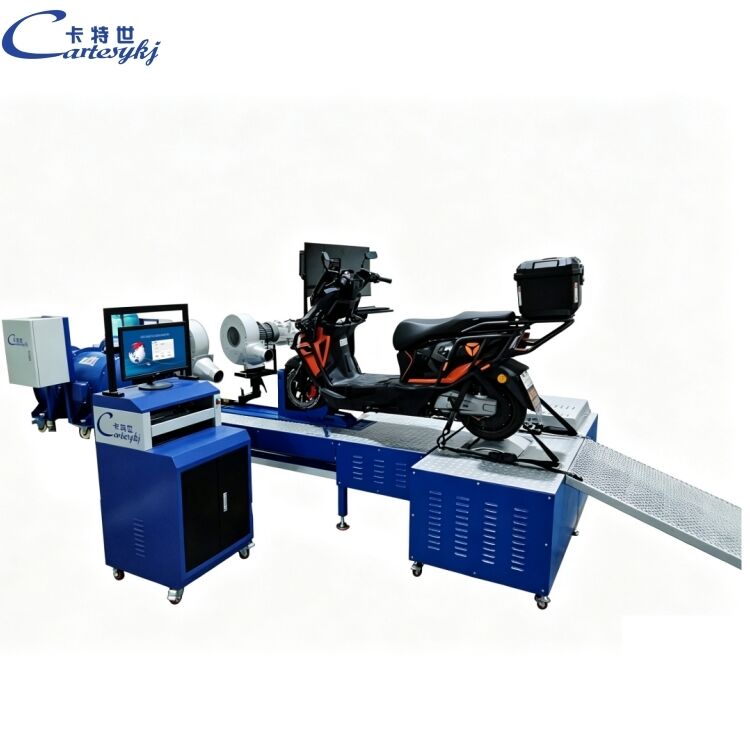

Cartesy 2-Wheeled Motorcycle Dyno Machine

The Cartesy Motorcycle Dynamometer (Eddy Current Type) is a state-of-the-art power testing equipment developed for comprehensive motorcycle performance evaluation. This chassis dynamometer system is widely utilized for performance testing, durability assessment, and emission analysis of motorcycles.

Key Features

Utilizing our proprietary inertia control algorithm, the system ensures stable and reliable operation. It supports fully automatic setting for simulated road resistance and employs the coast-down method for automatic friction loss correction. Resistance can be configured via look-up table method, Euro III standard method, and EPA standard method.

Test Standards

(Subject to actual configuration)

QC/T60-1993 Bench test methods for complete motorcycle performance
GB 14622-2007 Limits and measurement methods for exhaust pollutants from motorcycles
GB 18176-2007 Limits and measurement methods for exhaust pollutants from mopeds
European Standard 1997L0024-EN-2003
WMTC World Motorcycle Test Cycle
US EPA 40 CFR Parts 86.529-78 Road load force and inertia weight determination

Test Methods

Simulated road load resistance method
Direct input of simulated road load resistance coefficient method
Look-up table method
Euro III standard method
EPA standard method

Test Items

(Subject to actual configuration)

Speedometer calibration test
Odometer calibration test
Take-off acceleration performance test
Overtaking acceleration performance test
Steep hill climbing performance test
Speed test for long slope climbing
Maximum speed performance test
Minimum stable speed performance test
Coast-down performance test
Motorcycle driving wheel output power test
Engine output power performance test
Engine constant speed (automatic) test

Main Technical Parameters

Component	Specification
Roller Assembly	Diameter: 525 mm, Width: 400 mm, Max speed: 320 km/h
Rated Torque	1000 Nm
Rated Power	160 kW
Maximum Absorption Power	160 kW
Power Supply	380V AC, 50Hz, 80kVA (Power cabinet) 220V AC, 50Hz, 16A (Control cabinet)
Sensors	Speed sensor: 600 P/R, Torque sensor: 500 N*m
Control & Measurement	Time accuracy: 0.01 s, Mileage accuracy: 0.01 m, Coast-down step: 2 km/h

Equipment Composition

Complete system includes chassis dynamometer, measurement & control unit, dynamometer control cabinet, blower, and auxiliary devices.
