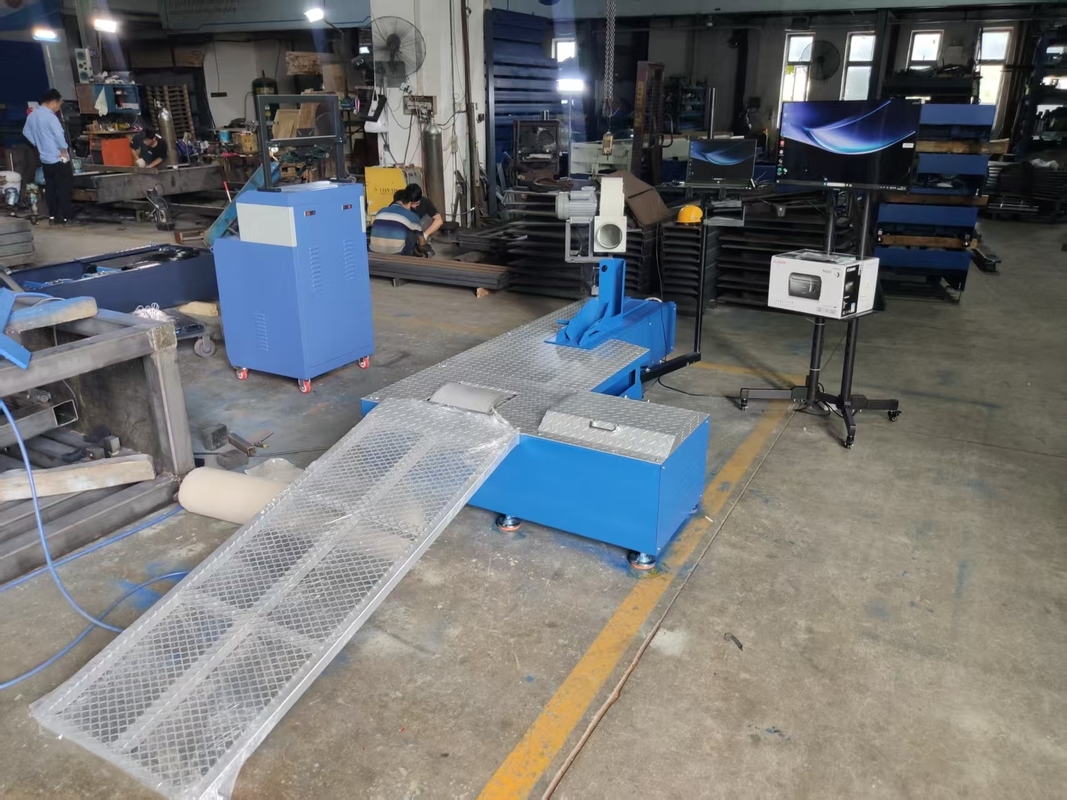

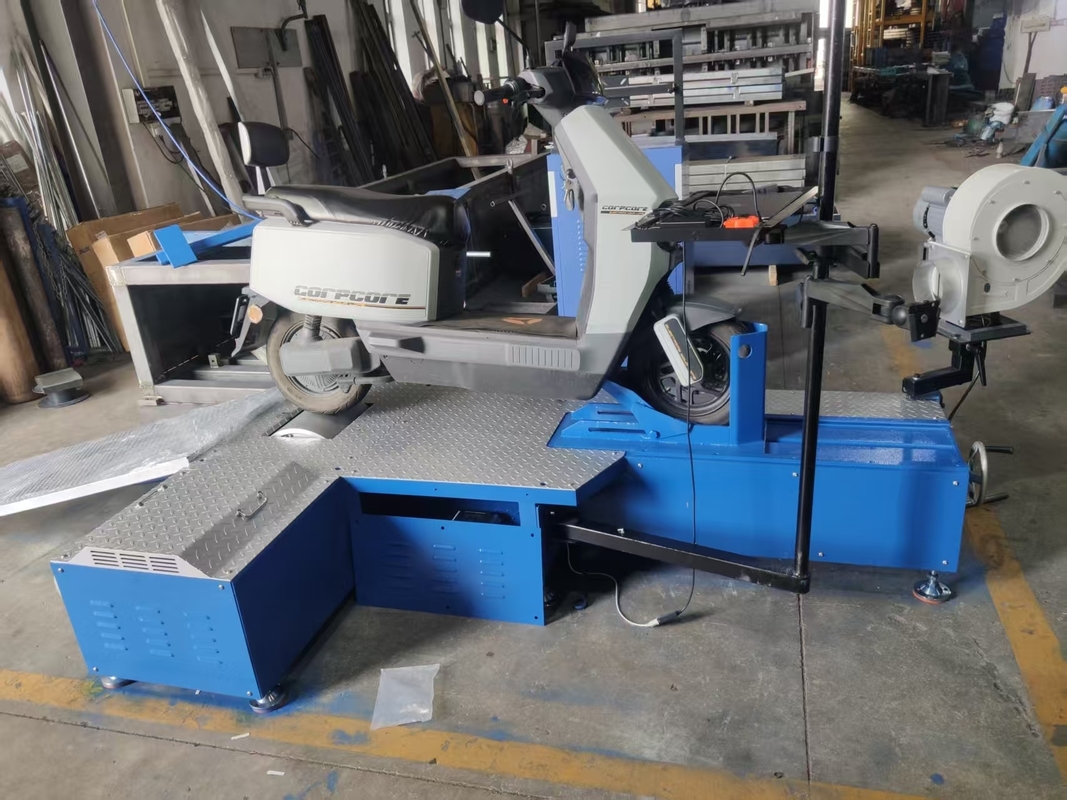

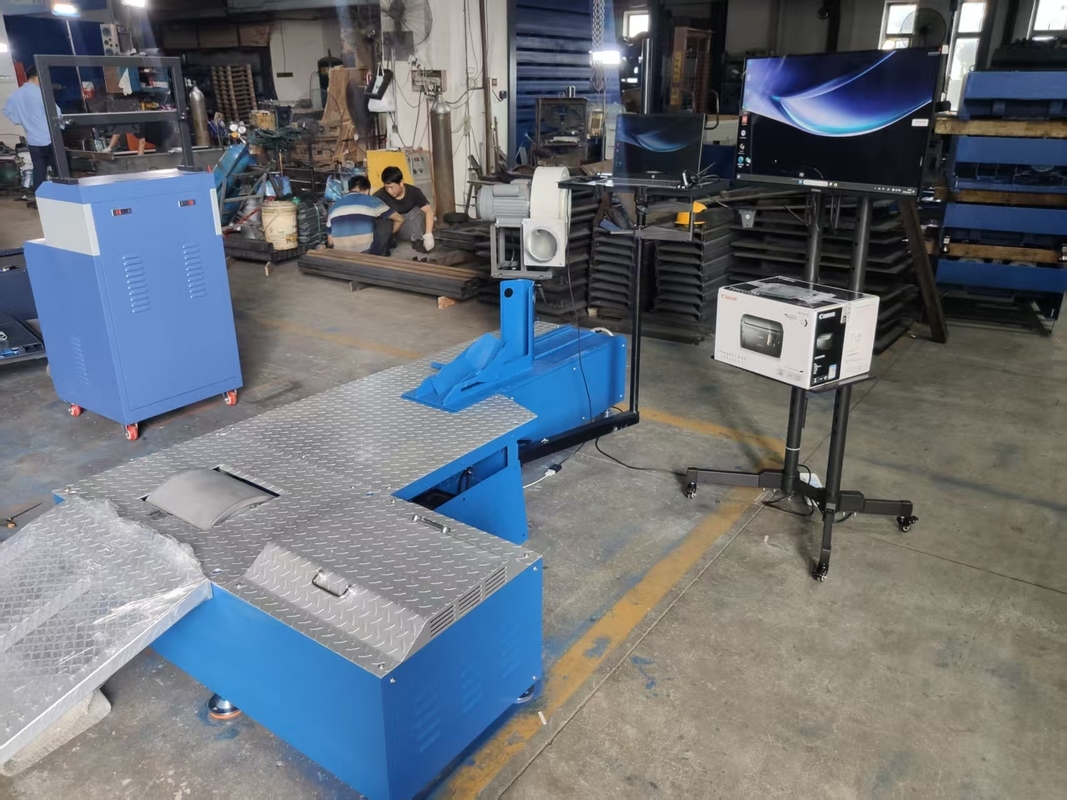

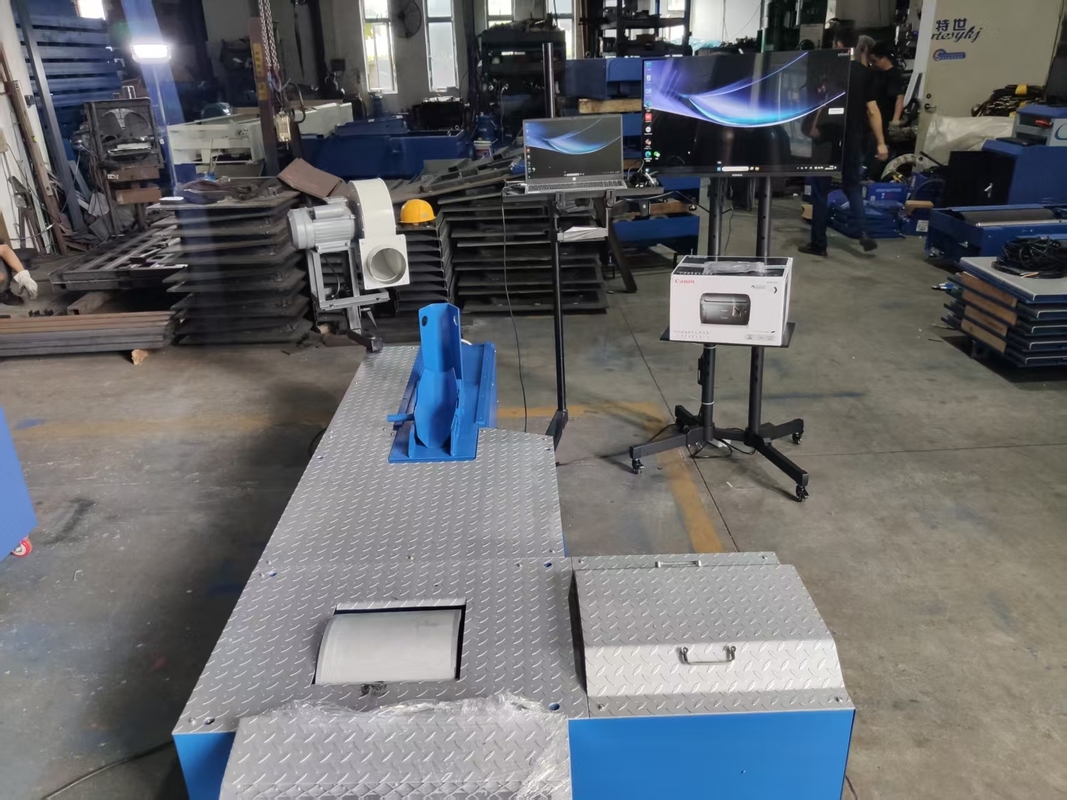

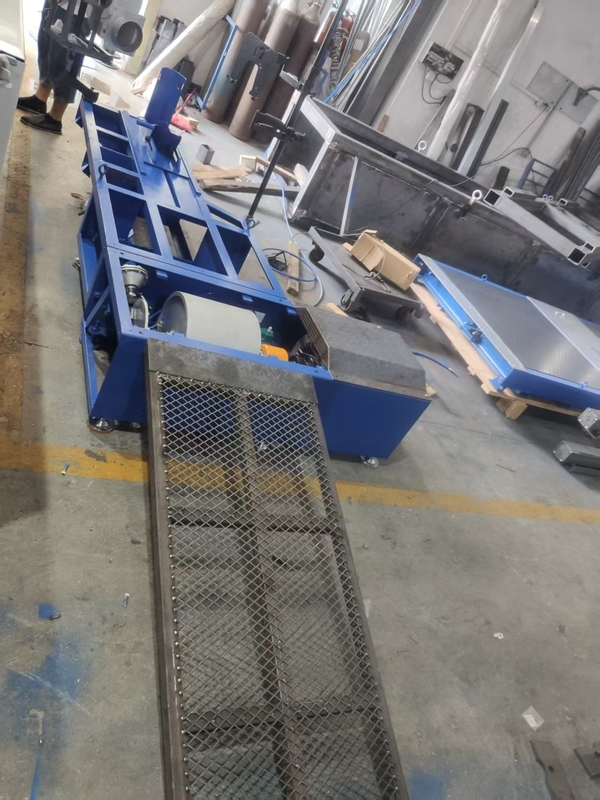

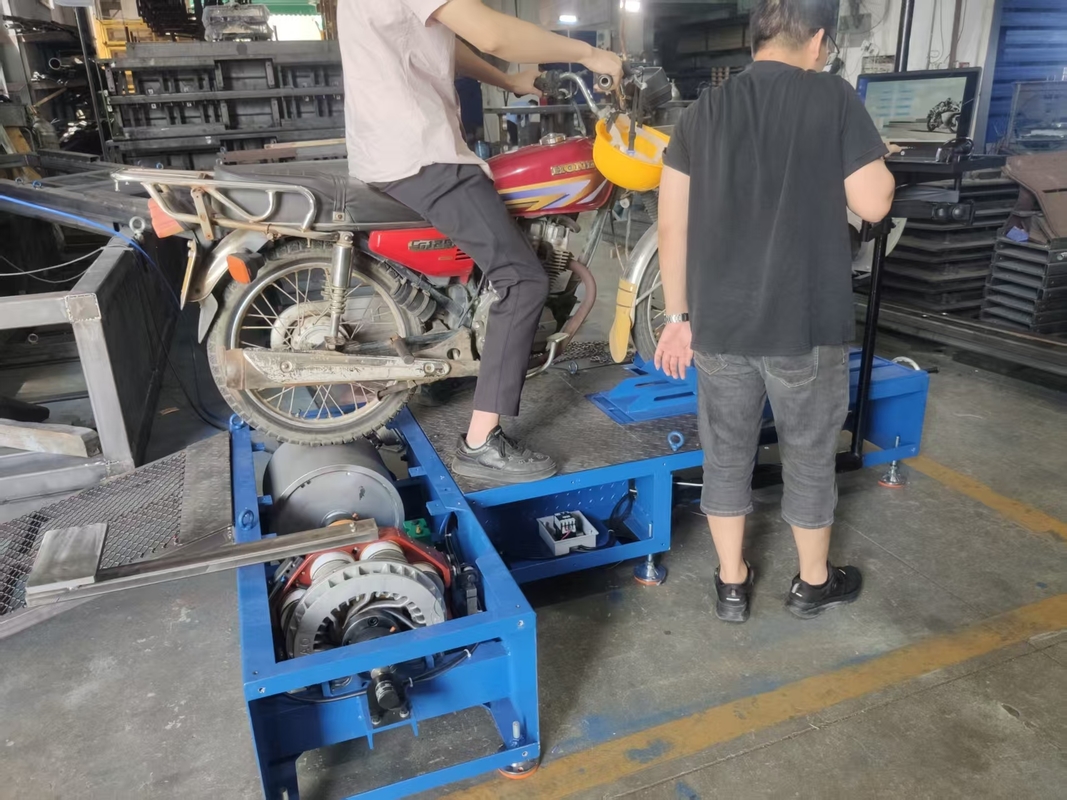

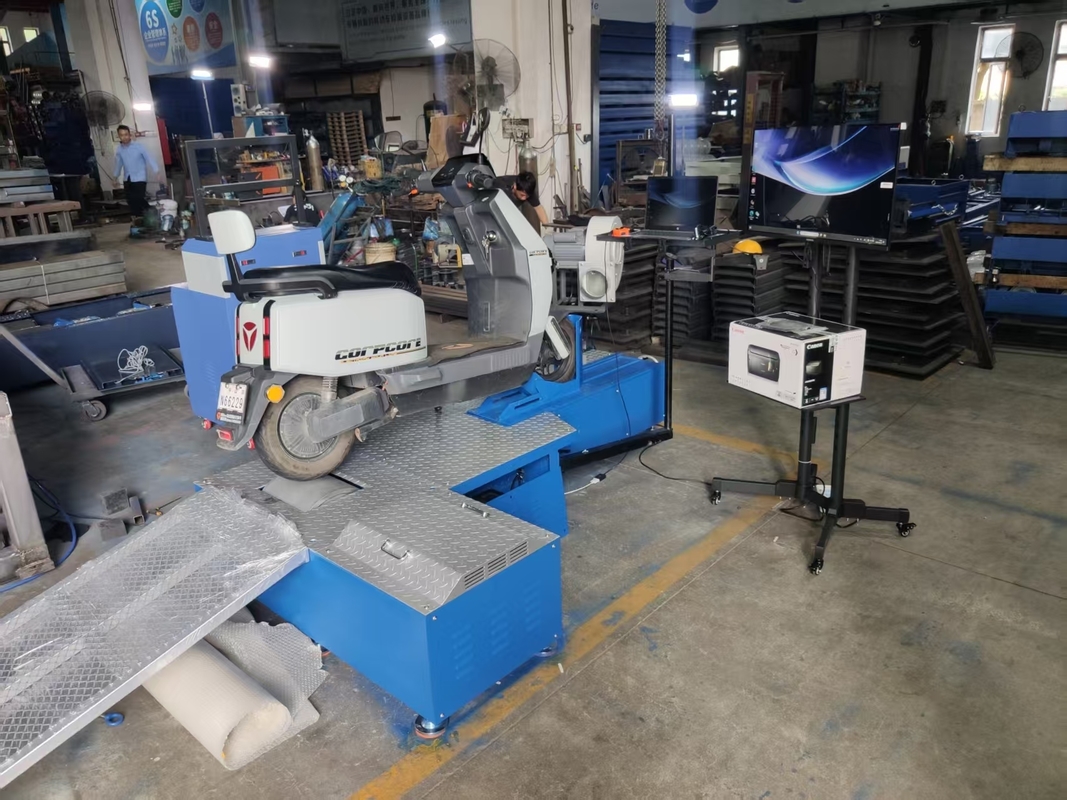

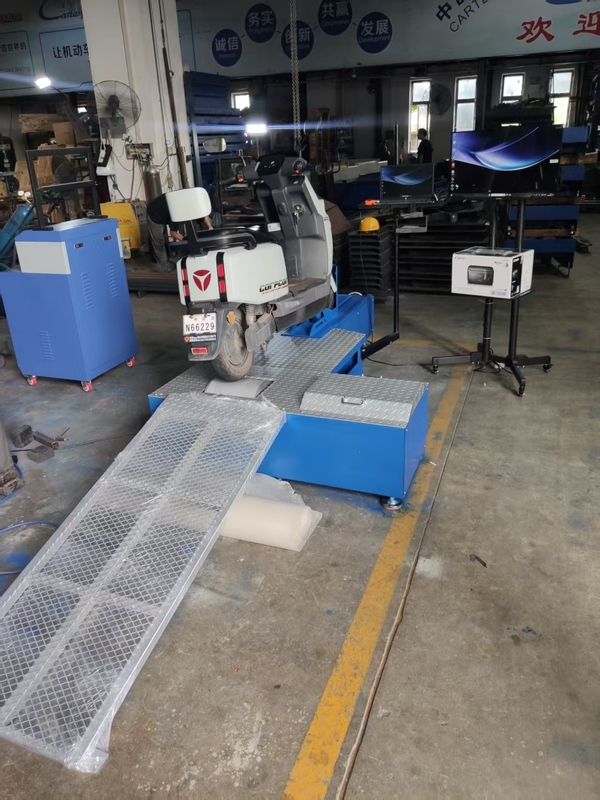

Chassis dynamometer for 2 wheels Motorcycle Single Roller CTMTDCG-3W

Single Roller Chassis Dynamometer for Two-Wheel Motorcycles – Model CTMTDCG-3W

Product Features:

The motorcycle chassis dynamometer is primarily used for performance and emission testing of motorcycles. It can also provide test conditions such as stable constant speed, constant force, and constant power for other specialized equipment.

This dynamometer system improves the accuracy of measuring the force exerted by the motorcycle on the roller by more precisely assessing roller friction through coast-down testing of parasitic power (internal losses). The system simulates different road surface friction coefficients and measures engine output power and torque under various simulated road conditions. Additionally, it can force the motorcycle to return to a preset speed and measure output power at that speed, generating power-torque curve diagrams across various speed points. With superior performance, comprehensive functionality, reliable quality, and user-friendly operation, this device is the preferred choice for motorcycle manufacturers conducting performance testing.

• Manufactured using high-quality materials and components

• Robust power absorption system designed for long-term use under high-intensity testing conditions

• Supports constant speed tests (customizable points), constant tractive force tests (customizable points), speedometer calibration, acceleration time test, coast-down time and distance tests, launch acceleration test, overtaking acceleration test, and hill climbing performance test

• Can connect to the motorcycle ECU to analyze driving performance, structural design, and related data under simulated conditions

• Dual safety mechanisms ensure testing safety, including self-protection, emergency stop, and software over-limit protection

• All real-time data can be saved up to 10 times per second during testing

• Equipped with multiple emission testing functions

• Features an automatic cooling system (axial fan) with automatic, manual, or independent control modes

Technical Specifications:

• Applicable Vehicle Type: Two-wheel motorcycles

• Maximum Axle Load (kg): 300

• Wheelbase Range (mm): 850–1500

• Minimum Ground Clearance (mm): 90

• Maximum Test Speed (km/h): 220

• Maximum Eddy Current Power Absorption (kW): 120

• Rated Measurable Torque (Nm): 700

• Clamping Method: Pneumatic centering clamping

• Clamping Range (mm): 50–230

• Roller Dimensions (mm): ￠373 × 300
