Name: Cartesykj Mobile Motorcycle test line facility Safety Test Line 700kg Load CTMYJ-750B Mobile Test Station
Brand: Cartesy Diagnosis Technology CO.,Ltd
SKU: CTMYJ-750B
Price: 499.00 USD
Availability: InStock

Home > Products > Mobile Vehicle Safety Test Line >

Cartesykj Mobile Motorcycle test line facility Safety Test Line 700kg Load CTMYJ-750B Mobile Test Station

700kg Load Mobile Vehicle Safety Test Line

Motorcycle Mobile Vehicle Safety Test Line

Place of Origin:

zhongshan,Chain

Brand Name:

Cartesykj

Certification:

ISO CE

Model Number:

CTMYJ-750B

Request A Quote

Product Details

Highlight:

700kg Load Mobile Vehicle Safety Test Line

Motorcycle Mobile Vehicle Safety Test Line

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Price

negotiation

Packaging Details

Wooden package

Delivery Time

20-25 working days

Payment Terms

L/C,T/T

Supply Ability

300 Set/Sets per Month

Working Position Mobile Vehicle Safety Test Line 10000kg Load CTYJ-10 Mobile Test Line

Get Best Price

video

Mobile Vehicle Inspection Facility for both truck and cars - (Combination One)

Get Best Price

video

Cartesykj Mobile Vehicle Safety Test Line Mobile Vehicle inspection facility for both car& truck

Get Best Price

Contact Now

Product Description

Cartesykj Mobile Motorcycle test line facility Safety Test Line 700kg Load CTMYJ-750B Mobile Test Station

Product Overview

Based on the rapid development of vehicle inspection industries and in accordance with road safety standards, Cartesy-kj has developed a reliable Mobile Vehicle Test Station for vehicles and motorcycles. This sophisticated equipment includes an equipment carrier, vehicle safety detection equipment, guide plate operation room, and electrical control system, forming a complete mobile detection line for motor vehicle safety performance assessment.

The mobile test station is ideal for motor vehicle management departments, motorcycle safety inspection organizations, manufacturers, and repair shops. All instruments are housed within a sky cabin designed for outdoor use, allowing the entire station to be transported to any location for convenient on-site inspections.

The station can handle multiple workstations simultaneously, functioning as a small mobile detection station with lower investment costs and reduced footprint. Featuring a novel, durable design with advanced separate controlling units, the system offers simplified hardware connections and high automation with strong anti-interference capabilities.

Setup is straightforward - the station can be deployed within minutes and is ready for immediate online detection once connected to power. The user-friendly operation requires minimal effort, and the station includes flexible network communication functions with customizable specifications.

Technical Specifications

Parameter	Specification
Max. Axle Load	750kg
Test Range of Weighting	0-750kg
Measuring Range of Brake Force	2×(0-2500)N
Pneumatic Supply	0.5-0.8mpa
Type of Motorcycles	For 2 & 3 wheels Motorcycles
Clamping Style	Pneumatic Centering
Power Supply	AC 220V/Customizable
Motor Power	1.5 kw*2
Headlight Test Mode	Fully automatic headlight test
Optional Tests	Speedometer test, exhaust test, etc. are optional and can be customized according to customer requirements

Product Image

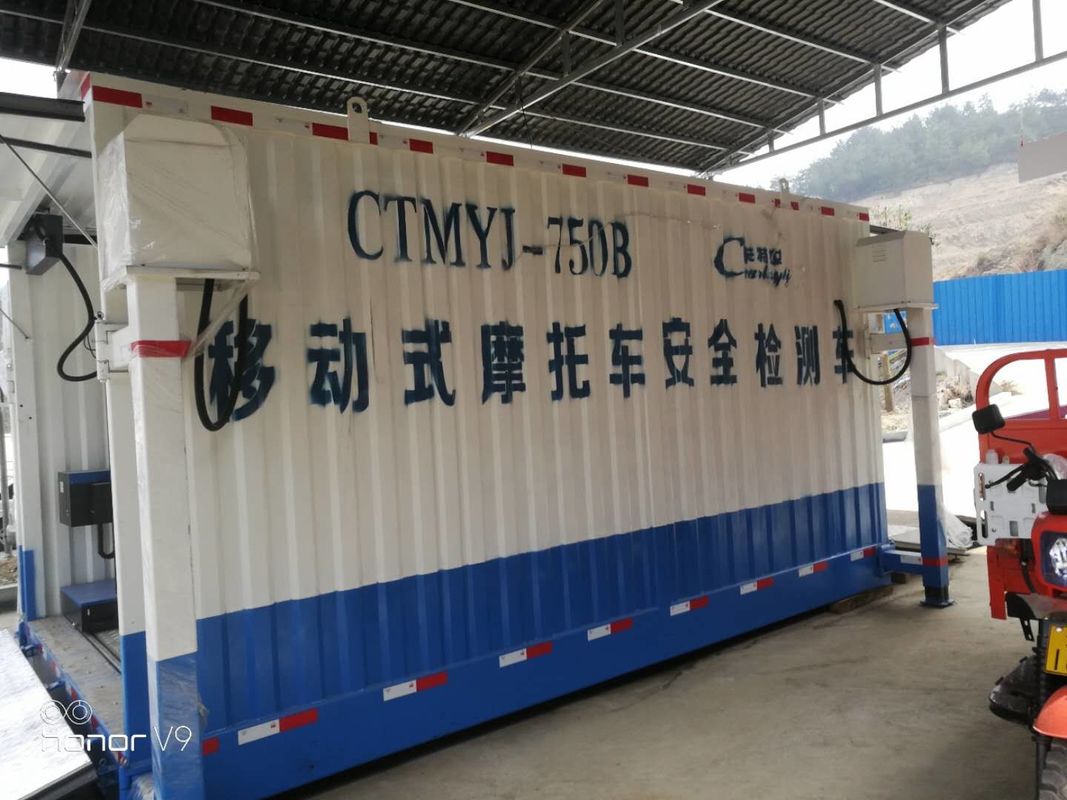

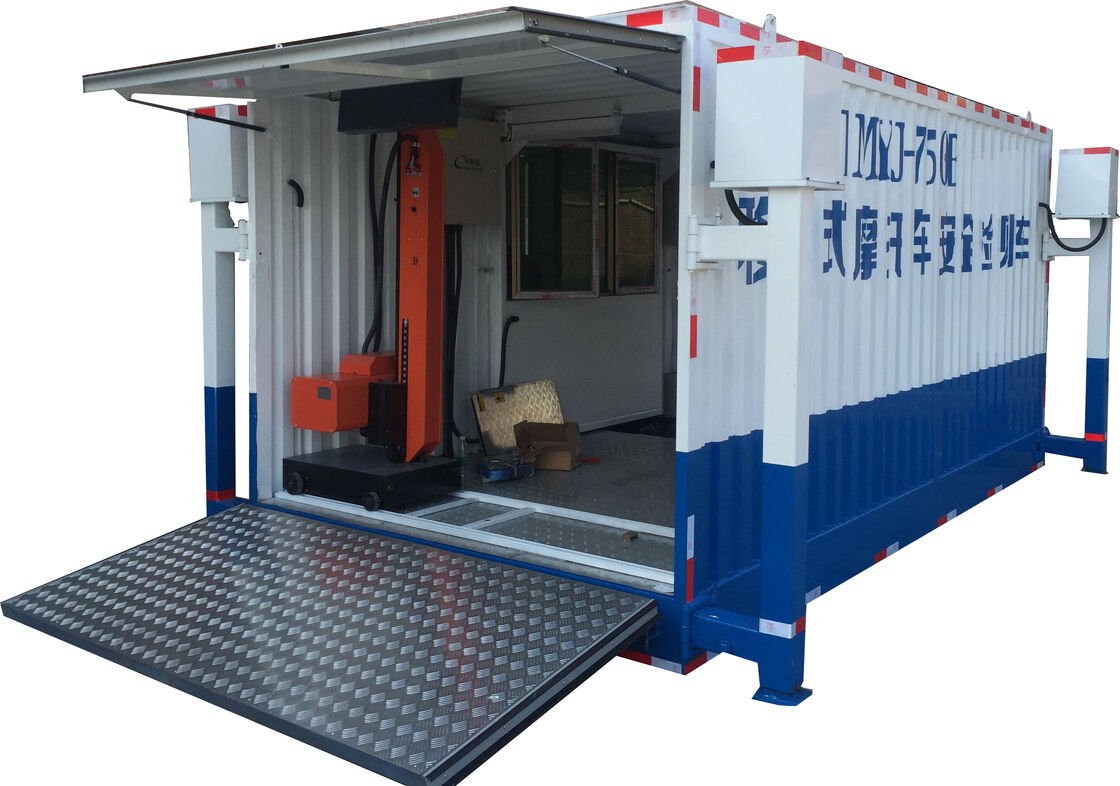

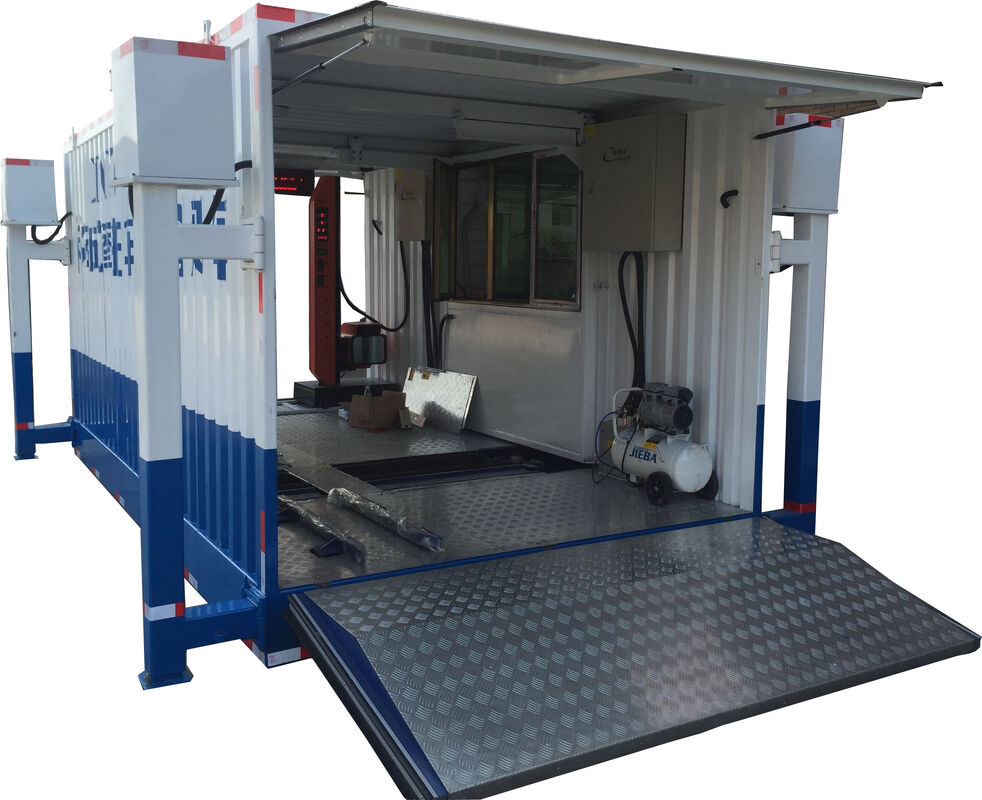

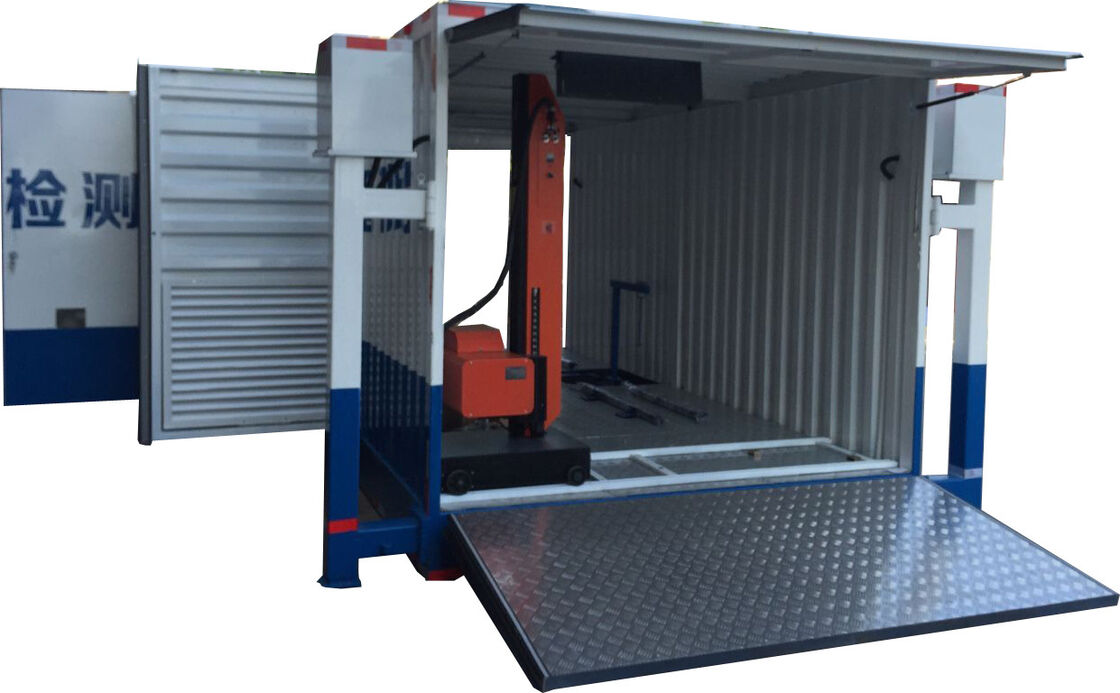

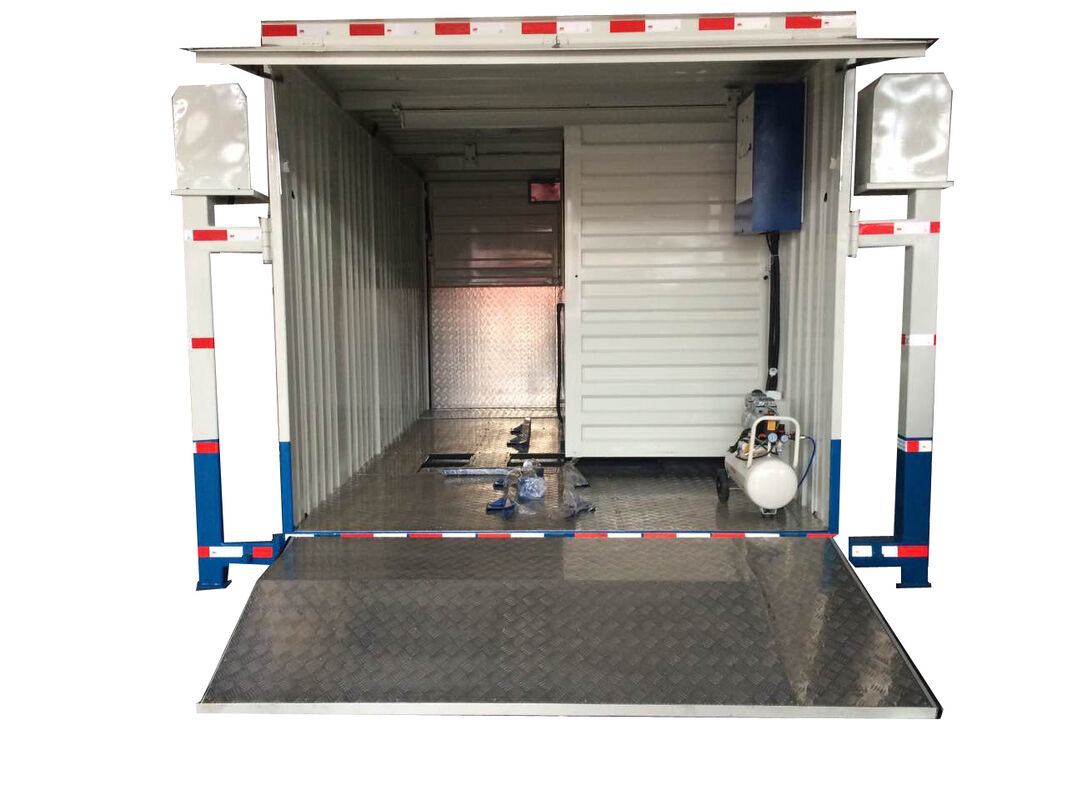

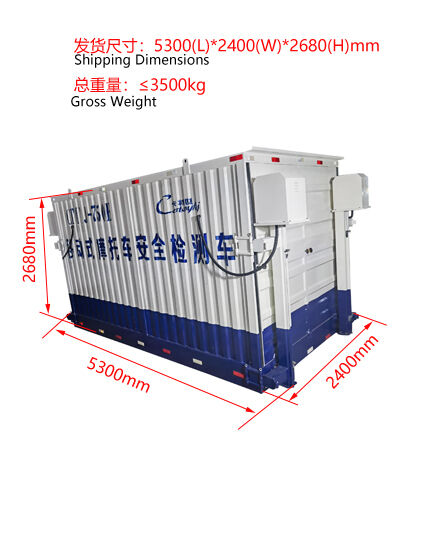

Cartesykj Mobile Motorcycle test line facility Safety Test Line 700kg Load CTMYJ-750B Mobile Test Station 0

Cartesykj Mobile Motorcycle test line facility Safety Test Line 700kg Load CTMYJ-750B Mobile Test Station 1

Cartesykj Mobile Motorcycle test line facility Safety Test Line 700kg Load CTMYJ-750B Mobile Test Station 2

Cartesykj Mobile Motorcycle test line facility Safety Test Line 700kg Load CTMYJ-750B Mobile Test Station 3

Cartesykj Mobile Motorcycle test line facility Safety Test Line 700kg Load CTMYJ-750B Mobile Test Station 4

Cartesykj Mobile Motorcycle test line facility Safety Test Line 700kg Load CTMYJ-750B Mobile Test Station 5

Cartesykj Mobile Motorcycle test line facility Safety Test Line 700kg Load CTMYJ-750B Mobile Test Station 6

Maintenance Guidelines

After three months of use, disassemble the platform panel and add calcium-base lubrication grease to the guide seat with a pressure rod type oil gun to lubricate the guide sleeve and guide pillar. Check if fastening bolts of guide seat and oil cylinder components are loose.
Check the oil level in the hydraulic station oil tank. Add N46 engine oil (old standard 30# engine oil) if oil volume is insufficient.
If the hydraulic system oil pipe breaks and oil sprays outside, stop operation immediately and perform maintenance. Do not block the broken place with hands as high pressure oil may cause injury.

Frequently Asked Questions

Q1. What is your terms of packing?

A: Generally, we pack our goods in wooden case per set

Q2. What is your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?

A: EXW, FOB

Q4. How about your delivery time?

A: Generally, it will take 10 or 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?

A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
