Place of Origin:
zhongshan,Chain
Brand Name:
Cartesykj
Certification:
ISO CE
Model Number:
CTYJ-10

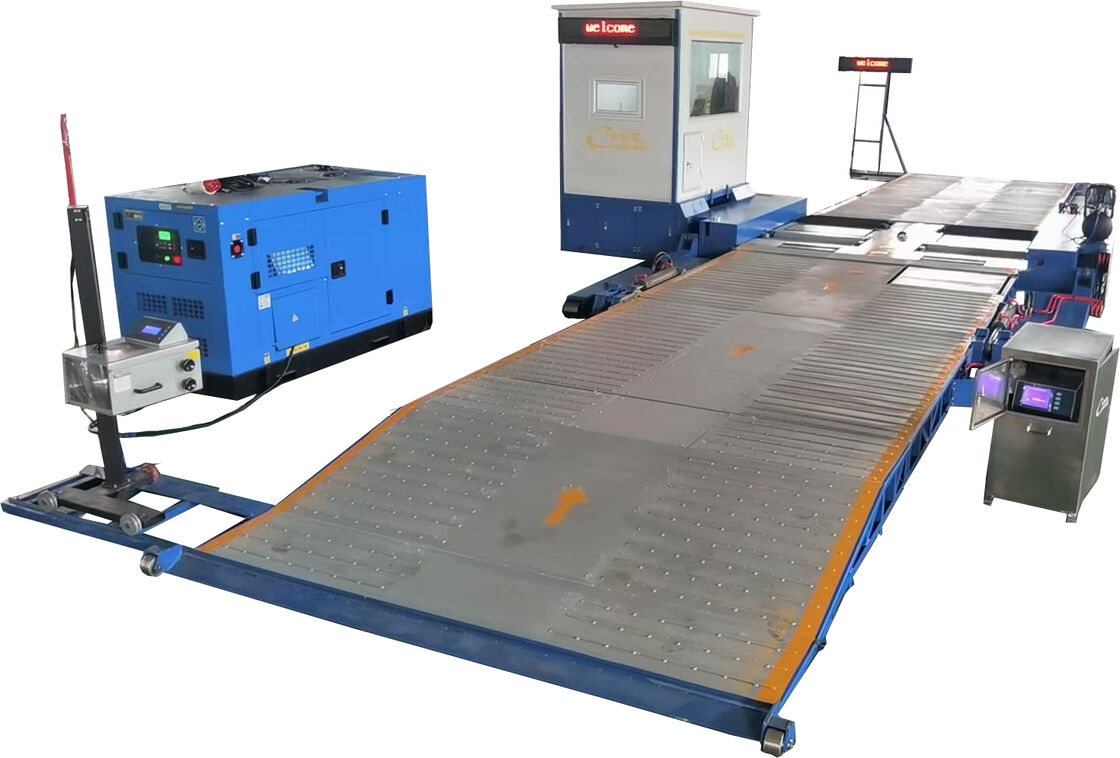

Vehicle Safety Testing Working Position CTYJ-10 Mobile vehicle safety test line

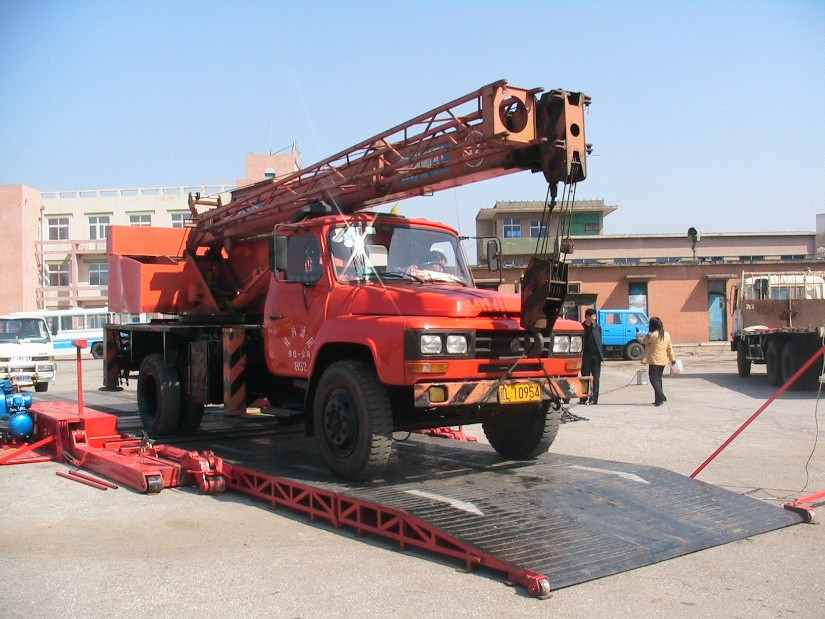

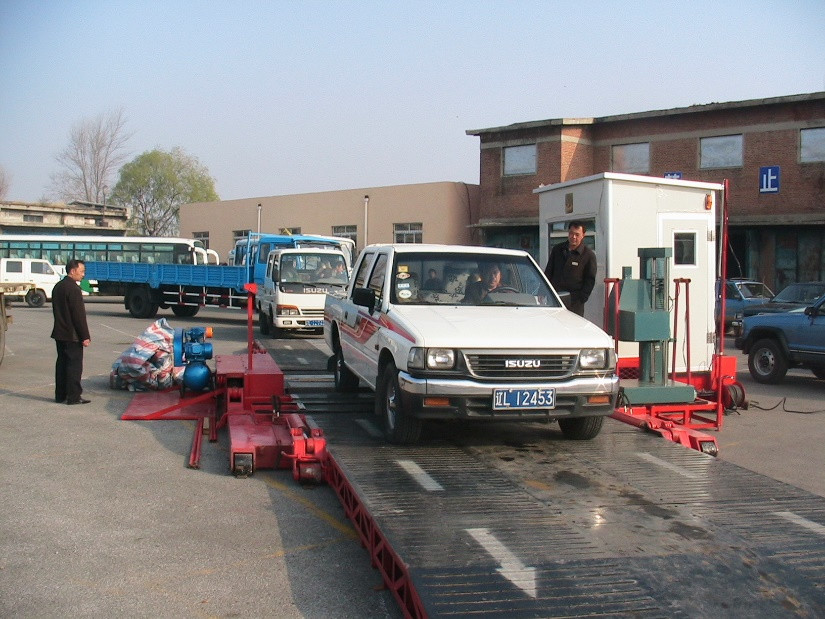

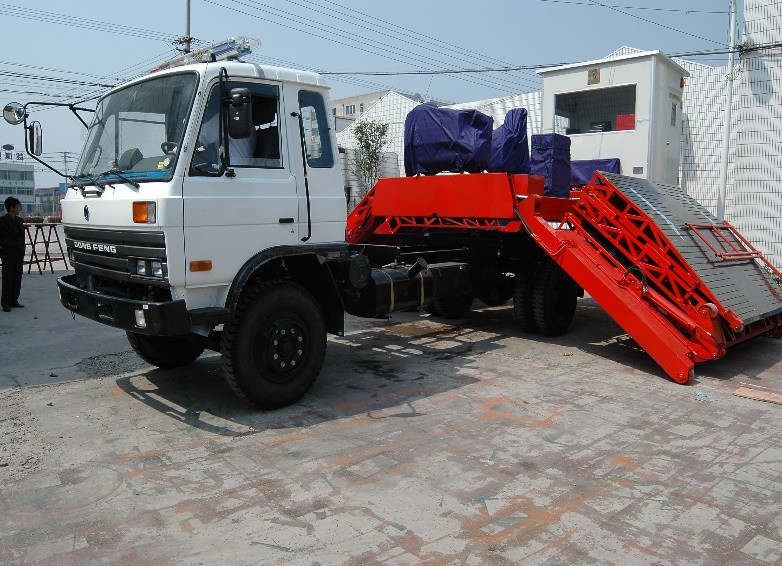

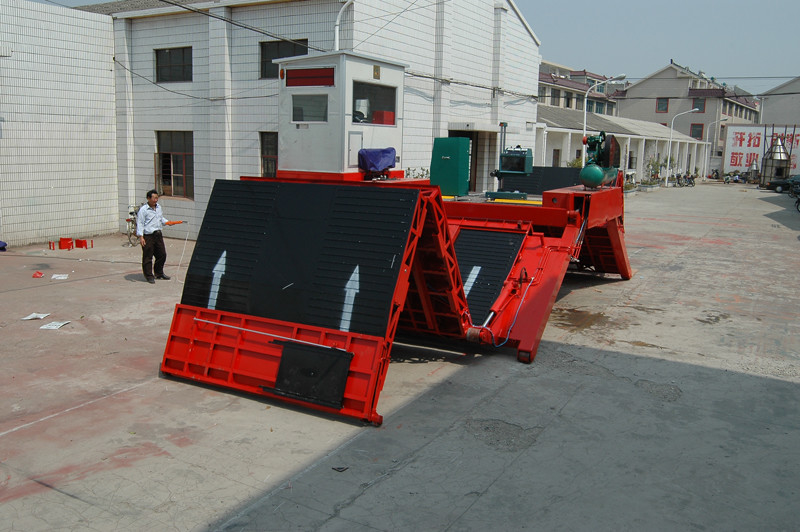

The mobile vehicle safety testing center has all the functions of fixed test station: it can be used for axle load of 10 tons ,two axes with wheelbase of less than 6 meters (rear Mercedes buses),Three-axis(single bridge drive), two-axle trailer, semi-trailer truck to implement headlamps, exhaust, smoke, sound level, side slip, axle load, braking power, speedometer and other safety performance testing.
| NO. | Item | Parameter | |
| 1 | Max.load(kg) | 10000 | |
| 2 | Applicable wheel base(mm) | ≦6000 | |
| 3 | Box outline size(mm) | 8200×2480×3800 | |
| Box open up size(mm) | 17600×5600×272 | ||
| 4 | Power(V) | ～380 | |
| 5 | Box weight(kg) | 10000 | |
| 6 |
Brake tester |
Roller diameter(mm) | Φ160 |
| Roller center distance(mm) | 456 | ||
| Brake force test scope(N) | 0—45000N×2 | ||
| Indication error | ±(0.075%FS或3%) | ||
| 7 |
Speed tester |
Roller diameter(mm) | Φ190 |
| Roller center distance(mm) | 470 | ||
| Test scope(km/h) | 0--120 | ||
| Indication error | ±(±2%+1km/h) | ||
| 8 |
Axle load tester |
Test scope(kg) | 0--10000 |
| Indication error | ±0.2%FS或±2% | ||
| 9 |
Wheel excursion tester |
Test scope(m/km) | ±10 |
| Indication error | ±0.2 | ||
1. After the product is used for three months, please disassemble the platform panel and add calcium-base lubrication grease to the guide seat with a pressure rod type oil gun to lubricate the guide sleeve and guide pillar. And also check if the fastening bolts of guide seat and oil cylinder etc. components are loose.
2. Please check the oil level in the oil tank of hydraulic station. Add N46 engine oil (old standard is 30# engine oil) if the oil volume is insufficient.
3. In case the oil pipe of hydraulic system is broken and the oil sprays outside, please stop the operation immediately and carry out maintenance. Do not block the broken place with hands. Otherwise the high pressure oil may injure persons.
Q1. What is your terms of packing?
A: Generally, we pack our goods in wooden case per set
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB
Q4. How about your delivery time?
A: Generally, it will take 10 or 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
