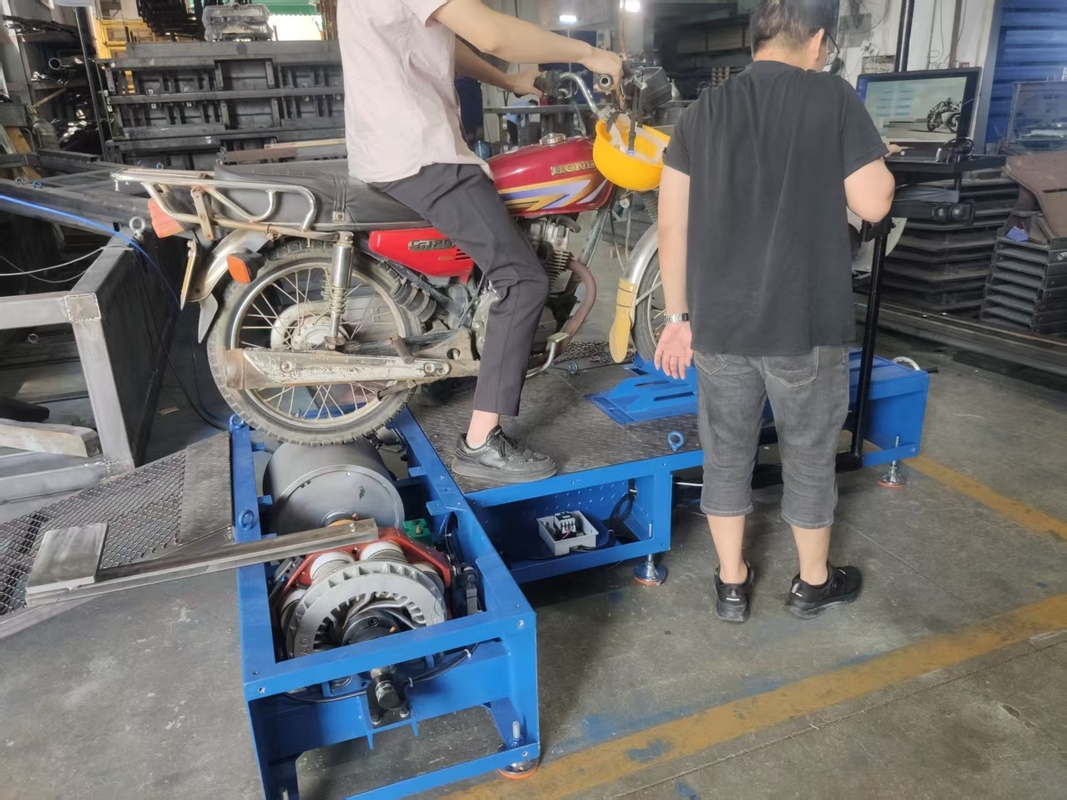

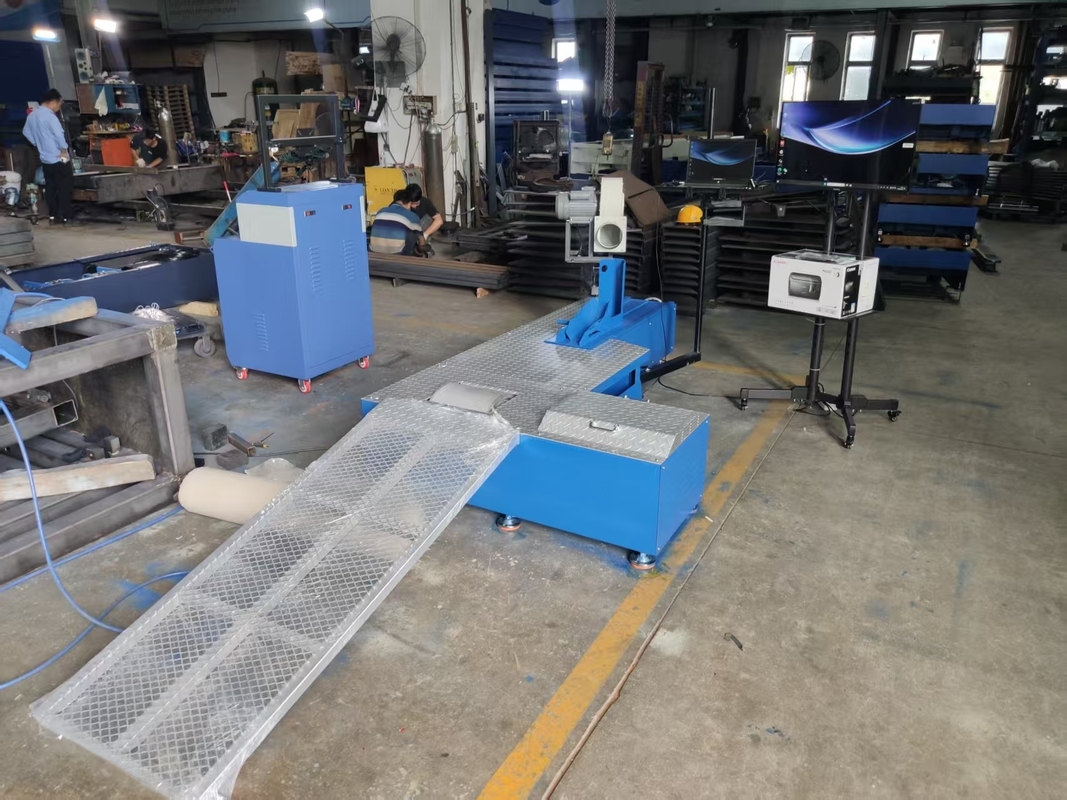

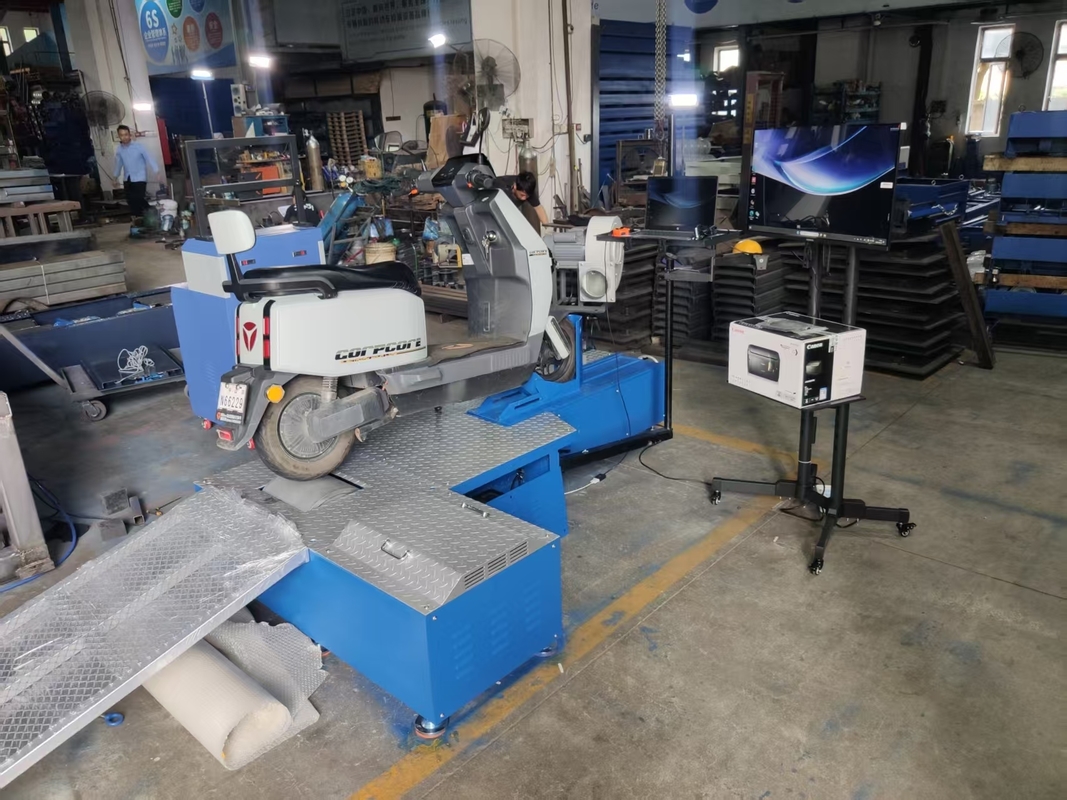

Chassis dynamometer for 2 wheels Motorcycle Single Roller CTMTDCG-3W

Chassis dynamometer for 2 wheels Motorcycle Single Roller CTMTDCG-3W

Product features:

Motorcycle chassis dynamometer is used for motorcycle performance and emission test as well as creating working conditions for other professional equipment that need stable constant speed, constant force and constant power conditions to test motorcycles.
In the system of motorcycle chassis dynamometer, the friction in the drum can be measured more accurately by the test of parasitic power (internal loss) coasting, which makes the measurement of the external force exerted by the motorcycle on the drum more accurate. The system also has the function of simulating the friction coefficient of different road, and measuring the output power and torque of motorcycle engine under different road conditions. The system can also force the motorcycle back to the set speed, measure the output power under the speed and the power torque curve formed by connecting each speed point. The equipment has the advantages of superior performance, complete functions, reliable quality and easy operation. The motorcycle chassis dynamometer is the first choice for motorcycle manufacturers to test the performance of motorcycles.

 Designed and manufactured using only the highest quality materials and components.
 The rugged design of the power absorption system also ensures long service life in the most demanding test environments
 Which can do constant speed test (Customizable test point); constant drive power test (Customizable test point); vehicle speedometer calibration; acceleration time test; coasting time and distance test; starting acceleration test; exceeding acceleration test; climbing performance test, etc.
 The user can connect the motorcycle ECU to analyze the driving performance, structural design and other relevant data of the motorcycle under the working condition created by the dynamometer
 Double safety insurance mechanism to ensure the safety of test. With self-protection function, emergency stop and software over limit protection
 All real-time data during detection can be saved 10 times per second
 It has a variety of emission test functions
 Equipped with automatic cooling system, i.e. axial flow fan, which can be controlled automatically, manually or separately

Product Parameter:

Applicable motorcycle type:For 2 wheels；
Max. axle load(kg):300；
Axle Distance(mm):850-1500
Min. height from floor(mm): 90
Max. testing speed(km/h):220；
Max. absorption power of eddy current(KW):120；
Measurable rated torque(NM):700；
Clamping Method:Pneumatic centering；
Clamping Range(mm):50-230
Roller size: ￠373*300
