Place of Origin:
Guangdong,CHIna
Brand Name:
Cartesy
Certification:
ISO
Model Number:
CTJX-3

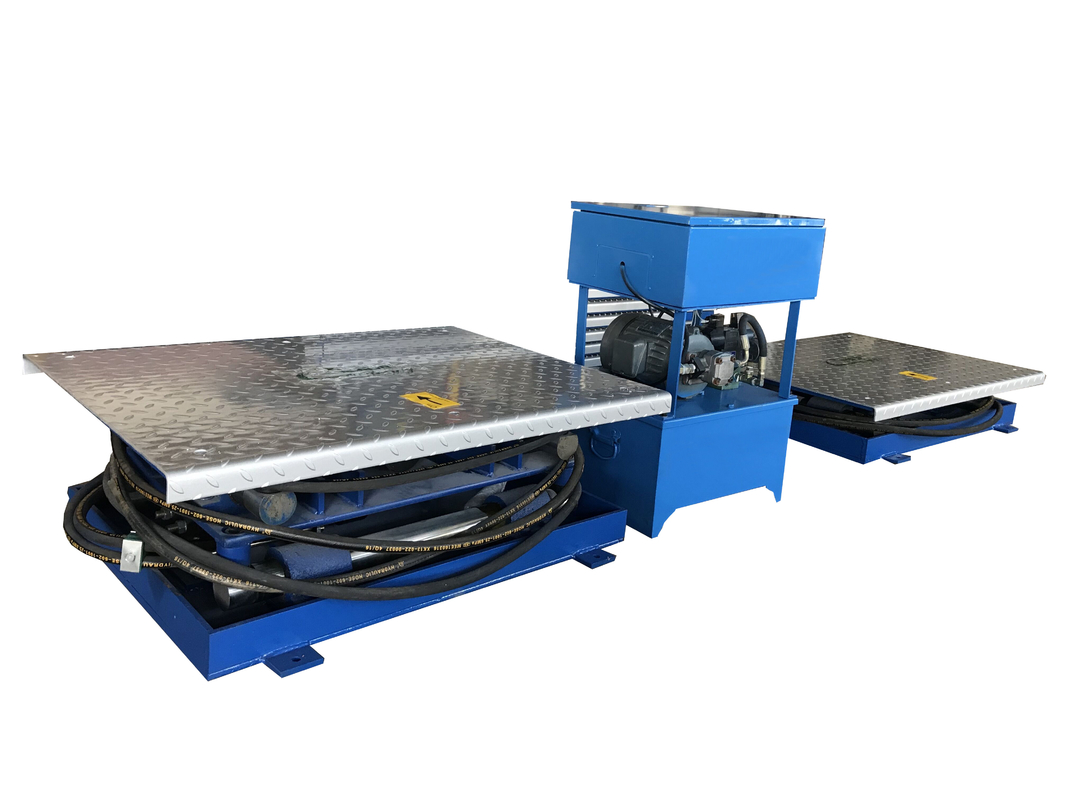

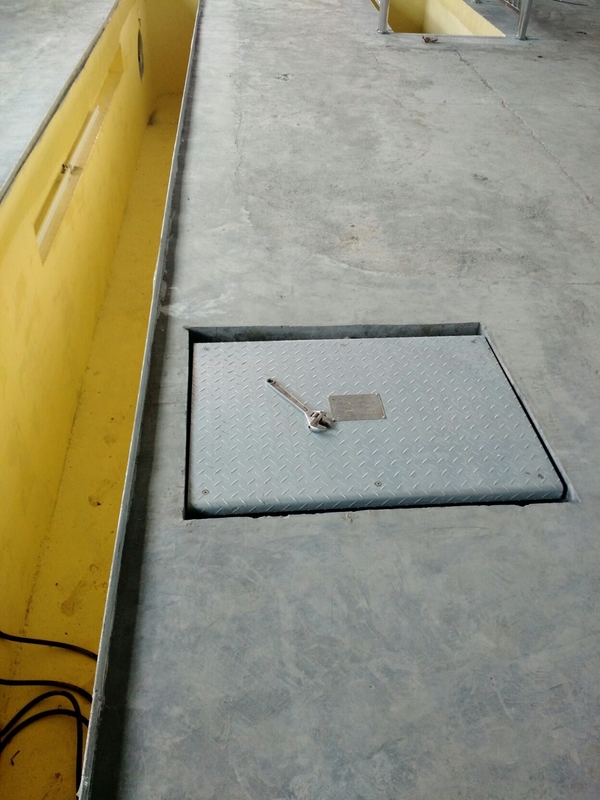

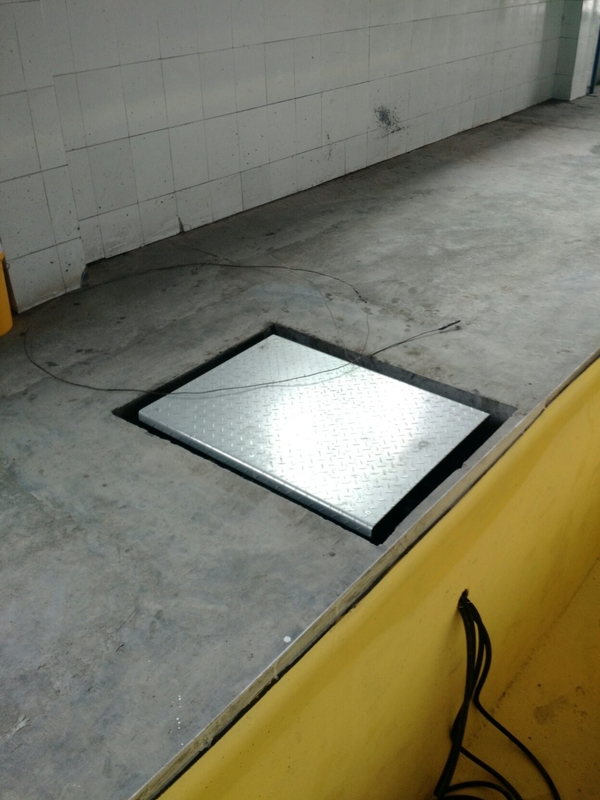

The tester is convenient to check the fitting clearance between the parts of the automobile suspension and steering system. Place the front or rear wheels of the car on two test boards of the machine,It can remotely control two test plates to do longitudinal and lateral movement, and can check the clearance of automobile horizontal tie rod, ball head, steering arm, Xuan wheel bearing, etc. The play detector, with two moving plates of play detector, is assisted to verify the joint play condition in a vehicle chassis. The play detector is made by three parts: 2x moving plates, hydraulic system and electric control system (with wireless remote & torch)

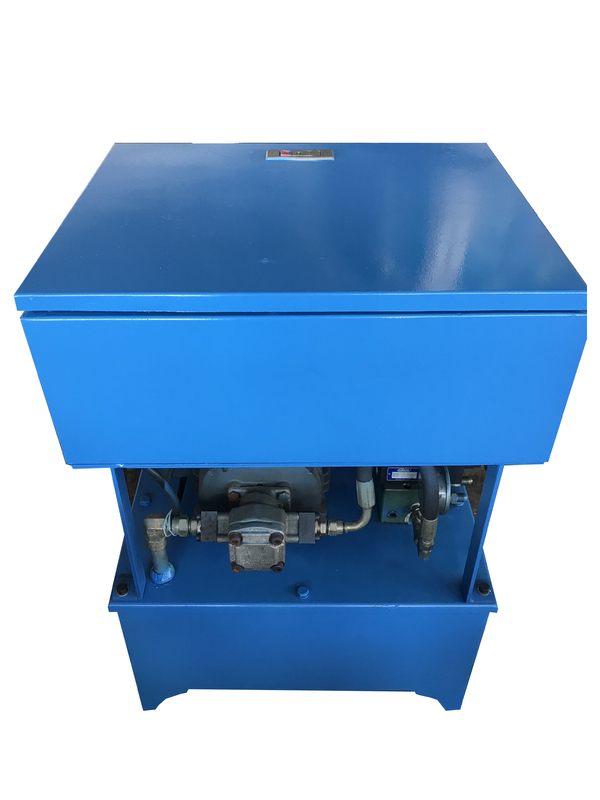

Hydraulic unit increases user convenience
Extra heavy duty structure, robust and lower noise design
| Maximum axle load(kg) | 10000/13000 | Working pattern | Hydraulic pressure drive |
| Plate dimension (mm) | 1000×750 | Supply voltage (V) | AC380 |
| Plate moving scope (mm) | ±50 | Motor power (kw) | 3 |
| Plate Max. moving force (kN) | 20 | Weight (kg) | 2×470 |
| Plate moving speed(mm/s) | 60-80 | Operation method | Wireless remote control |
1. After the product is used for three months, please disassemble the platform panel and add calcium-base lubrication grease to the guide seat with a pressure rod type oil gun to lubricate the guide sleeve and guide pillar. And also check if the fastening bolts of guide seat and oil cylinder etc. components are loose.
2. Please check the oil level in the oil tank of hydraulic station. Add N46 engine oil (old standard is 30# engine oil) if the oil volume is insufficient.
3. In case the oil pipe of hydraulic system is broken and the oil sprays outside, please stop the operation immediately and carry out maintenance. Do not block the broken place with hands. Otherwise the high pressure oil may injure persons.
Q1. What is your terms of packing?
A: Generally, we pack our goods in wooden case per set
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB
Q4. How about your delivery time?
A: Generally, it will take 10 or 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Send your inquiry directly to us
