Place of Origin:
China
Brand Name:
cartesykj
Certification:
CE
Model Number:
CTZZ-13-4

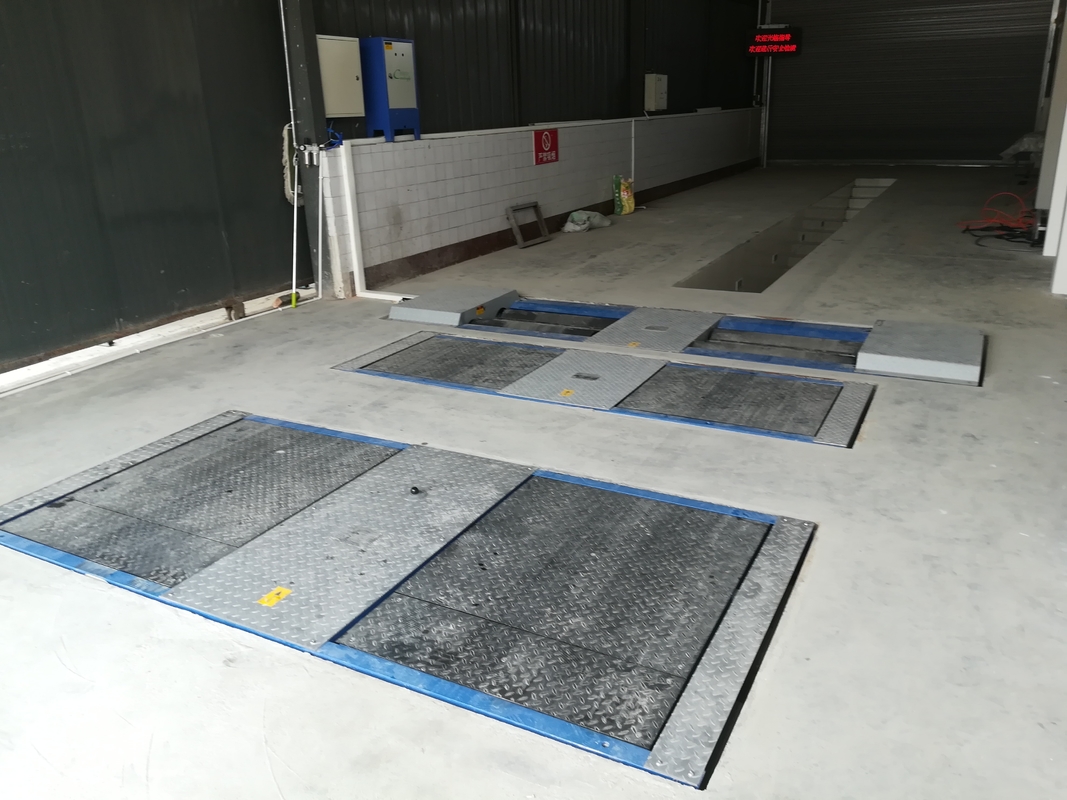

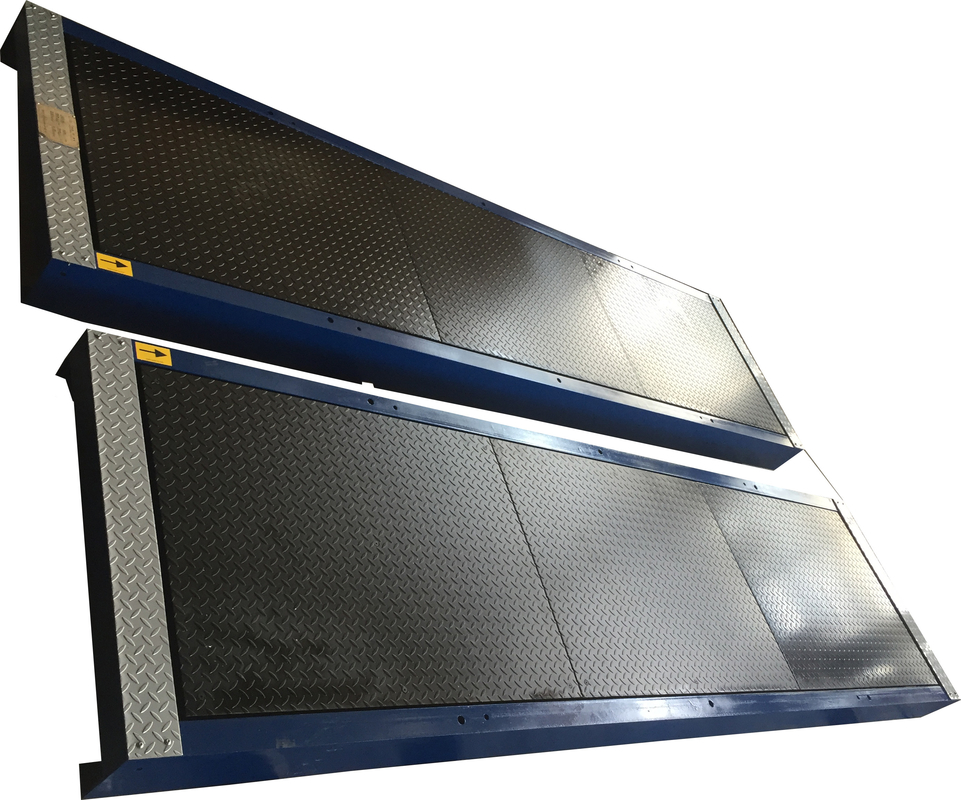

Vehicle Axle (Wheel) Load Tester is to measure the wheel load of a vehicle, the measured weighing value is an important factor for calculation of the brake efficiency.Meeting the GB21861-2014 standards, this tester can weigh more than two axles of the entire vehicle at the same time.
Extra-strong structure boby. The body is welded as a whole with high strength and durability
No anchor bolt is required for installation, so it is convenient and quick for installation and debugging
Anti-slanting weighting design. Accurate and stable measure
It can measure the wheel mass, axle load mass and vehicle mass
High quality brand-name high-precision strain type sensor, high test accuracy
Quick drive-through testing mode ,which can make the detection efficiency extremely high
High quality sensor with excellent precision
Being able to be installed on either side of the trench
| Model: | CTZZ-13-4 | CTZZ-13-6 |
| Max. passing axle load (kg) | 3×10000kg | 3×10000kg |
| Weighing plate dimensions | 2×4000×1150mm | 2×6000×1150mm |
| Tread(inside/outside)mm | 700/3000 | 800/3000 |
