Place of Origin:
China
Brand Name:
cartesykj
Certification:
CE
Model Number:
CTZZ-10

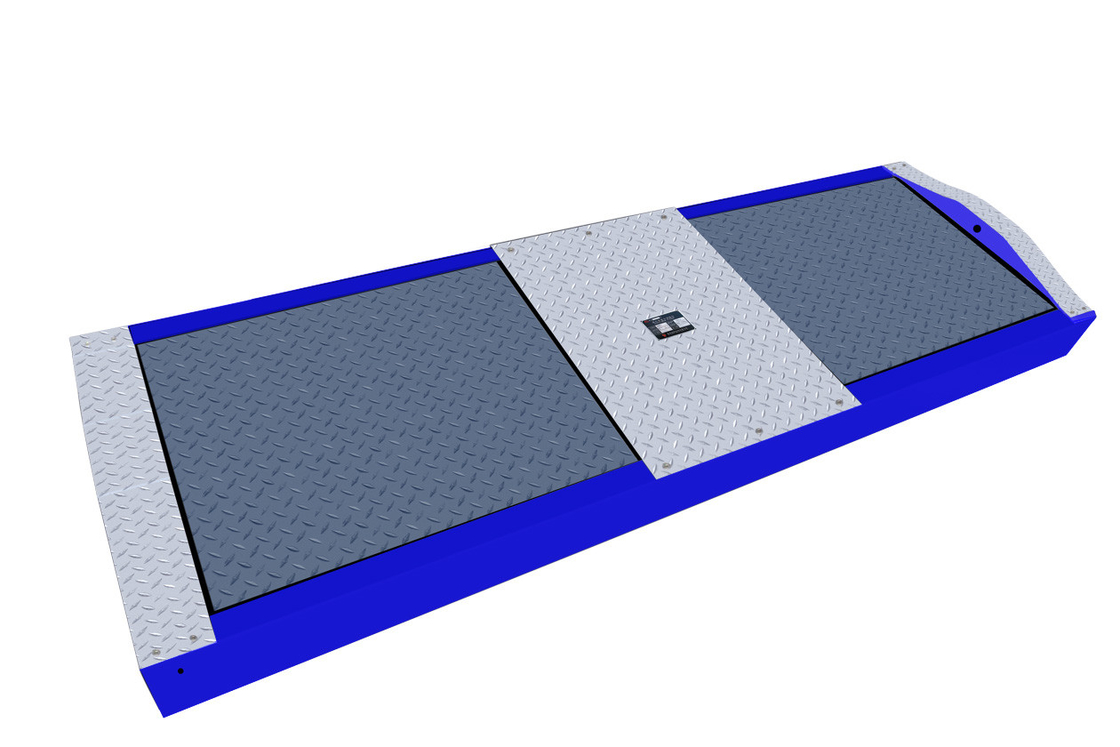

Vehicle Axle (Wheel) Load Tester is to measure the wheel load of a vehicle, the measured weighing value is an important factor for calculation of the brake efficiency
Extra-strong structure boby. The body is welded as a whole with high strength and durability,
No anchor bolt is required for installation, so it is convenient and quick for installation and debugging
Anti-slanting weighting design. Accurate and stable measure
It can measure the wheel mass, axle load mass and vehicle mass
High quality brand-name high-precision strain type sensor, high test accuracy
Quick drive-through testing mode ,which can make the detection efficiency extremely high
| Model | CTZZ-3 | CTZZ-10 | CTZZ-15 |
|
Max. passing axle load (kg) |
3000 | 10000 | 15000 |
| Measuring range of wheel load (kg) | 0-1500 | 0-5000 | 0-7500 |
| Weighing plate dimensions | 800*500 | 1000*800 | 1100*800 |
| Tread(inside/outside)mm | 700/2400 | 700/2700 | 700/2900 |
| Installation dimensions (mm) | 2700×660×200 | 3000×960×220 | 3000×960×220 |
