Cartesykj 10T Secondary vehicle maintenance and testing lane Roller brake tester with axle load side slip tester

Cartesykj 10T Secondary vehicle maintenance and testing lane Roller brake tester with axle load side slip tester

10T Roller brake tester

Place of Origin:

Guangdong, China

Brand Name:

Cartesykj

Certification:

ISO

Model Number:

CT-2-10A

Contact Us
Request A Quote
Product Details
Name:
10T Secondary Vehicle Maintenance And Testing Lane Roller Brake Tester With Axle Load Side Slip Tester
The Max. Axle Load:
100000kg
Applied Wheel Tread:
800-2200mm
Warranty:
12 Months
Motor Power:
3KW*2、2.2KW*2
Usage:
Brake Test And Load Test And Sideslip And Suspension For Cars
Power Supply:
AC380V±10%50HZ
Function:
Test Brake And Test Sideslip And Test Wheel Load And Test Suspension
Color:
Blue Or As Your Request
Version:
NEW
Port:
Guangzhou
Highlight:

10T Roller brake tester

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
$8,754.00 - $9,989.00/sets
Packaging Details
Wooden packing
Delivery Time
20-25 working days
Payment Terms
L/C, T/T
Supply Ability
120 Set/Sets per Month
Product Description

Cartesykj 10T Secondary vehicle maintenance and testing lane Roller brake tester with axle load side slip tester



1. Product Features:

  • The inspection tester supports a maximum axle load of 10,000 kg.
  • The detection control system uses a high-brightness LED display for guidance and is controlled by an industrial-grade computer.
  • Integrated with smoke density, exhaust gas, and headlight detection functions; speedometer detection functionality is optional.
  • The detection system supports manual single-station, semi-automatic, and fully automatic operation modes.
  • Automatically prints and determines detection results, with fast query capabilities for detection data and records based on time, license plate, vehicle model, etc.
  • Equipped with the latest national standards, allowing users to modify detection criteria as needed.
  • Features high-speed system signal data acquisition; the braking process curve can be dynamically displayed on the software interface while operating the brake pedal.

2. Operation Interface:

Cartesykj 10T Secondary vehicle maintenance and testing lane Roller brake tester with axle load side slip tester 0

3. Vehicle Inspection Login Interface:

Cartesykj 10T Secondary vehicle maintenance and testing lane Roller brake tester with axle load side slip tester 1

4. Detailed Technical Parameters for Each Inspection Tester:

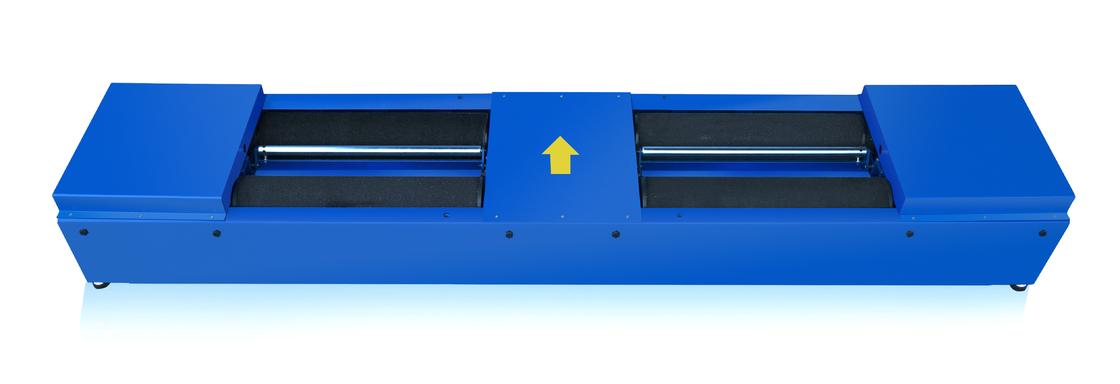

(1) CT-FZ-10T Brake Tester Technical Parameters:

  • Rated Load (t): 10
  • Wheel Brake Force Measurement Range (daN): 0-4000
  • Division Value (daN): 1
  • Indication Error: ±3%
  • Roller Diameter (mm): 245
  • Roller Length (mm): 1100
  • Inner Span of Rollers (mm): 700
  • Outer Span of Rollers (mm): 2900
  • Roller Center Distance (mm): 470
  • Height Difference Between Front and Rear Rollers (mm): 30
  • Roller Surface Type: Sand-coated
  • Roller Sliding Friction Coefficient: ≥0.85
  • Roller Surface Linear Speed (Km/h): 2.5
  • Third Roller Status: Available
  • Auxiliary Vehicle Exit Device: Airbag lifting
  • Power Supply (V): AC380V 50Hz
  • Motor Power (KW): 11KW*2
  • Sensor Power Supply (V): DC12
  • Calibration Ratio: 10
  • Self-weight (Kg): 1800

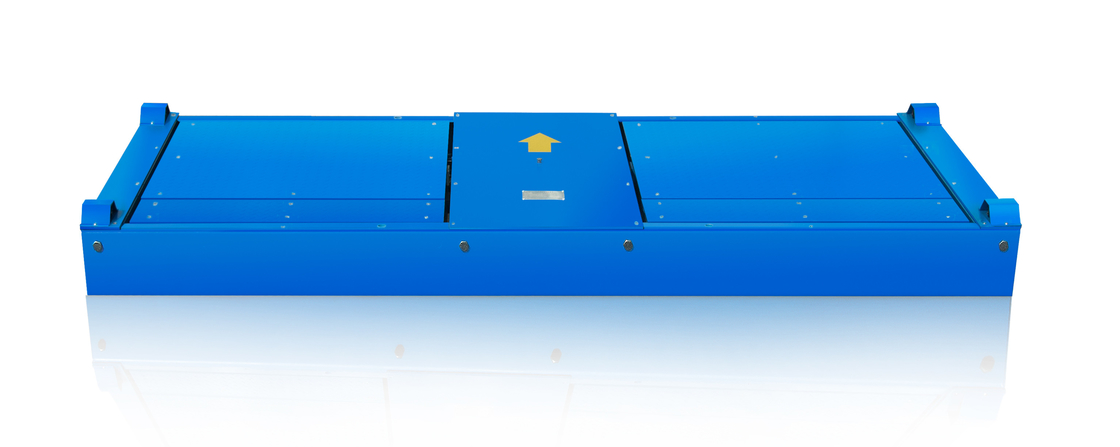

(2) CT-CH-10 Side-Slip Test Platform Technical Parameters:

  • Model: CT-CH-10T
  • Rated Load (t): 10
  • Measurement Range (m/Km): ±10
  • Slide Plate Dimensions (mm): 1000*1100
  • Applicable Wheel Track (Inner/Outer) (mm): 700/2900
  • Relaxation Plate Dimensions (mm): 1100*250
  • Sensor Power Supply (V): DC12
  • Sensor Output Signal (V): 0-12
  • Structure Type: Double-plate linkage
  • Self-weight (t): 0.85
  • Cartesykj 10T Secondary vehicle maintenance and testing lane Roller brake tester with axle load side slip tester 2Cartesykj 10T Secondary vehicle maintenance and testing lane Roller brake tester with axle load side slip tester 3Cartesykj 10T Secondary vehicle maintenance and testing lane Roller brake tester with axle load side slip tester 4

Cartesykj 10T Secondary vehicle maintenance and testing lane Roller brake tester with axle load side slip tester 5Cartesykj 10T Secondary vehicle maintenance and testing lane Roller brake tester with axle load side slip tester 6
