Place of Origin:
zhongshan,Chain
Brand Name:
Cartesykj
Certification:
ISO9001 CE
Model Number:
CT-21
video

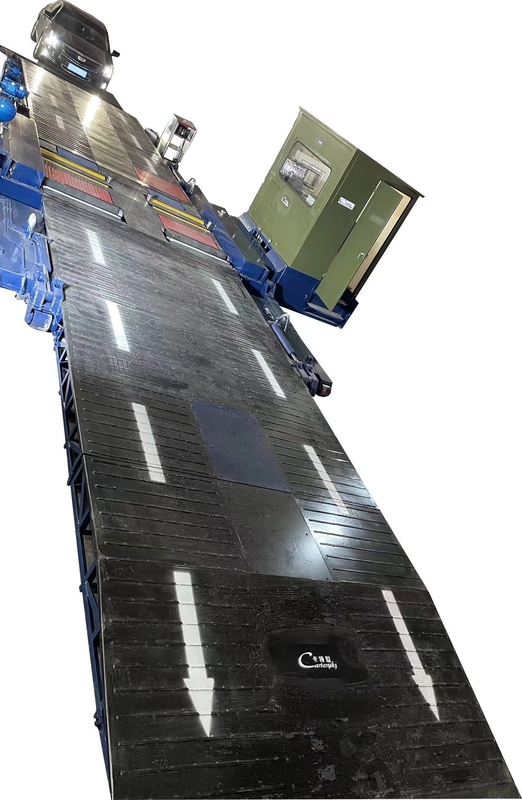

CT-21 Mobile Vehicle Inspection Facility (MVIF) For Heavy-Duty as well asype Mobile Vehicle Safety Inspection Station
The mobile vehicle safety testing center has all the functions of fixed test station: it can be used for axle load of 10 tons ,two axes with wheelbase of less than 6 meters (rear Mercedes buses),Three-axis(single bridge drive), two-axle trailer, semi-trailer truck to implement headlamps, exhaust, smoke, sound level, side slip, axle load, braking power, speedometer and other safety performance testing.

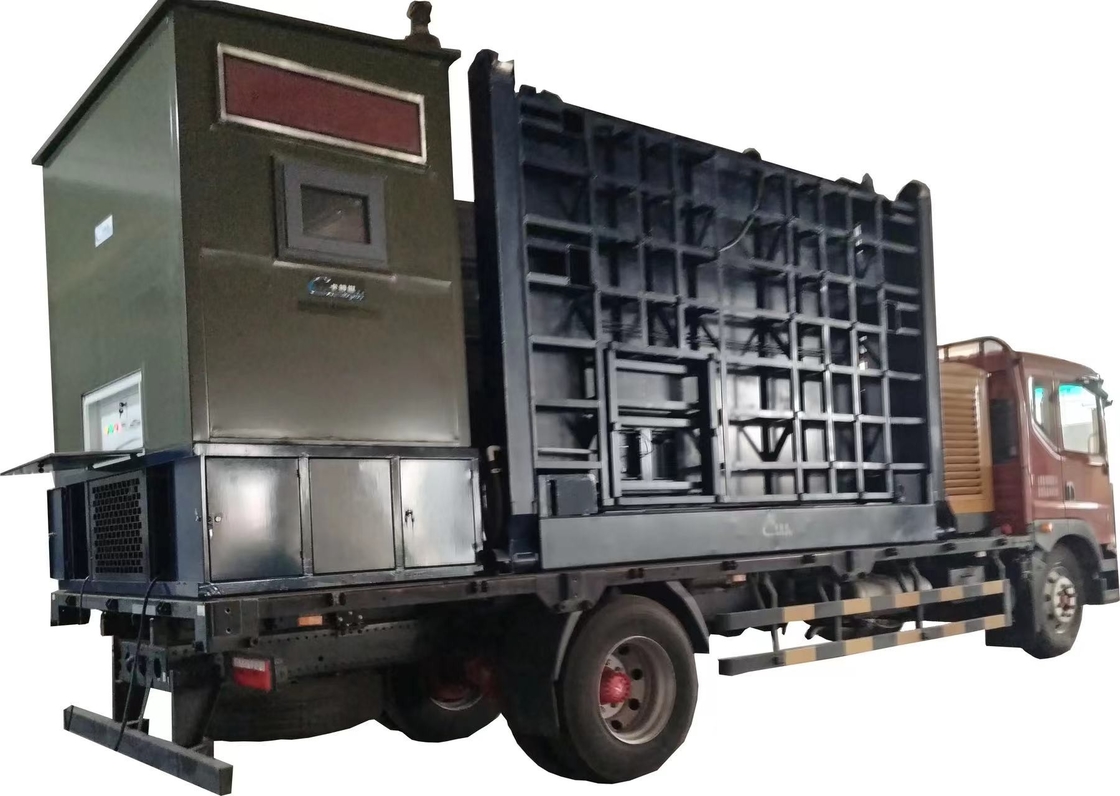

Based on fast developing vehicle inspection booming situation in different countries, according to road safety standard and regulation, Cartes-kj develops reliable Mobile vehicle test station for vehicles and Motorcycle. The equipment is composed of equipment carrier (flat car), vehicle safety detection equipment, guide plate operation room and electrical control system. It is a mobile detection line that can detect motor vehicle safety performance. It is widely used in motor vehicle management department, motorcycle safety inspection organization, motorcycle manufacturer and repair shopl All kinds of instruments are integrated in the sky cabin (mobile station body,) which can be used in the open air, can be carried by carrier car, and can be moved to any destination for on-site detection, so as to facilitate the people and benefit the people
It can realize multi work station simultaneous detection, which is equivalent to a small mobile detection station, with less investment and small floor area
The mobile test station is novel, beautiful and durable
lAdvanced system of separate controlling, simple structure for easy hardware connection, highly automatic and smart system with high speed and efficiency as well as stable system and strong anti-interference ability
lA few minutes to carry out the mobile station body, plug in the power supply can be immediately online detection, simple and convenient operation
Flexible network communication function
Various specifications can be customized according to the needs of users

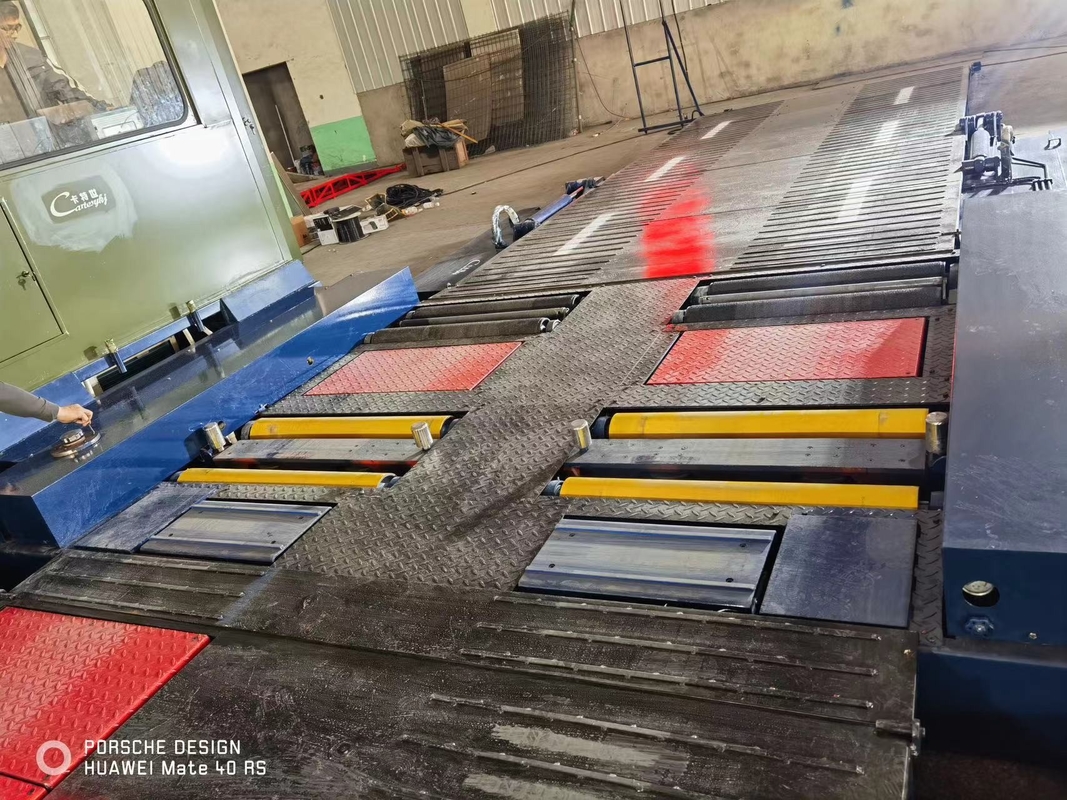

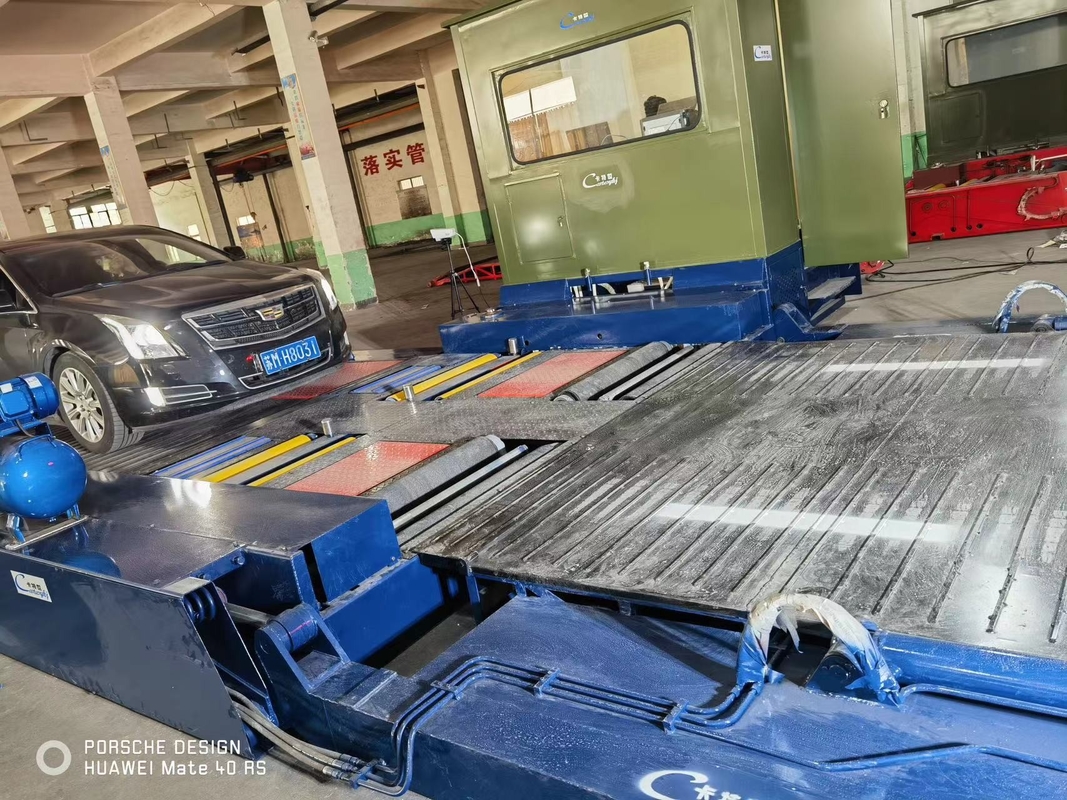

CT-21 portable vehicle safety testing station
| Item(NO.) | Project | Type | Mark |
| 1 |
brake tester |
CTFZ-10 | Detect the sum, difference, coordination time, blocking force, etc. |
| 2 | axle load tester | CTZZ-10 |
Detect the weight of each wheel of the car |
| 3 | side slip tester | CTCH-10 | Detect the amount of side slip of the front wheel of the car |
| 4 | speedometer tester | CTCS-10 | Detecting the accuracy of a car's speedometer (two-wheel drive) |
| 5 | suspension tester | CTXX-10 | Supplied by Carters |
| 6 | Opacity Meter-optional | Detect the opacity of non-explosion-proof vehicles | |
| 7 | electric headlight tester optional | Detect the light intensity and light polarization of automobile headlights | |
| 8 | emission analyzer optional | Detection of CO and NOx in explosion-proof vehicles | |
| 9 | sound level meter optional | HY-104A |
Detect car horns, alarm bells |
| 10 | Fully automatic light instrument loading mechanism | ||
| 11 | Runway for inspection | ||
| 12 | Air compressor |
Provides lifting power for the speed test table |
|
| 13 | Hydraulic control hoist system of machinery | CTYX | Automatically fold the inspection platform without manual handling |
| 14 | Mechanical testing platform | CTJT | 16 manganese steel platform |
| 15 | Air conditioner room | CTKZ | Provide a comfortable working environment |
| 16 |
hardware of automatic control system ) Including: Worker's accusing of machine, printer, photoelectric switch, etc. |
CTTS6.2 | Signal acquisition and processing |
| 17 | Monitoring wiring | ||
| 18 | High light LED screen (two) |
Guide the driver to drive the vehicle detection |
|
| 19 | The steady voltage power and UPS power etc. |
Provide stable working power for the system |
|
| 20 | Fittings and Other subsidiary devices (amplifying system, etc.) |
Equipment Lift Truck Status
Sideslip tester:
| Item | Unit | Parameters | |
| Max. axle load | Kg | 10000 | |
| Plate dimension | mm | -10—+10 | |
|
Plate force (moving 0.1mm) |
N | ≤50 | |
|
Plate force (moving 3mm) |
N | ≤80 | |
| Test scope | m/km | -15—+15 | |
| Indication error | m/km | ±0.2 | |
| Power | V | DC12V | |
Roller brake tester
| Item | Parameters |
| Max. axle load | 10000kg |
| Brake force test scope | 0-45000N×2 |
| Measurement accuracy | ±(0.075%FS或5%) |
| Roller diameter | 160mm |
| Roller length | 1020mm |
| Roller center distance | 380mm |
| Rotating speed | 51r/min |
| Voltage | 380V |
| Power | 5KW |
Speedometer
| Item | Parameters |
| Max. axle load | 10000kg |
| Test scope | 0-100km/h |
| Measurement accuracy | ±(2%+1km/h) |
| Lifting method | Double airbag |
| Airbag working pressure | 0.6-0.8MPa |
| Roller diameter | Φ190mm |
| Roller length | 1000mm |
| Roller center distance | 430mm |
Axle load tester
| Item | Parameter |
| Max. axle load | 10000kg |
| Graduation value | 2kg |
| Indication error | ±(0.2%Fs或2%) |
| Sensor supply voltage | 12V |
Headlight tester
| Item | Parameter |
| Test scope | 0-60000cd |
| Optical axis offset | 上 1º30´ ~ 下 2º30´ 左 2º30´ ~ 右 2º30´ |
| Indication error | ±10% |
| Optical axis offset | ±15´,±15´ |
CA Type Mobile Vehicle Safety Inspection Station is a highly efficient mobile vehicle inspection line that can be used in various scenarios. It is designed to provide a comprehensive and accurate analysis of the automotive performance testing system. This product is certified with ISO9001 and CE, ensuring its quality and reliability. It is manufactured in Zhongshan, China and has a minimum order quantity of 1. The price is negotiable and payment terms include L/C and T/T. The product has a supply ability of 300 sets per month and delivery time is 1 month. It is packaged in a sturdy plywood case to ensure safety during transportation.
CA Type Mobile Vehicle Safety Inspection Station can be used in a variety of product application occasions and scenarios. One of the primary use cases is in vehicle testing centers, where it is used to inspect and test vehicles for safety and performance. It is also suitable for use in automotive manufacturing plants, where it can be used to ensure that vehicles meet the required standards before being released to the market.
The mobile vehicle inspection line is also useful for independent mechanics and garages, who can use it to diagnose and repair vehicles. With its accurate and comprehensive analysis, it can quickly identify any issues and help mechanics to provide the necessary repairs. It is also ideal for fleet management, where it can be used to monitor and maintain the performance of a large number of vehicles.
In addition to these scenarios, the CA Type Mobile Vehicle Safety Inspection Station can be used in various other industries that require vehicle testing and analysis. These include transportation and logistics, public safety, and government agencies.
In summary, CA Type Mobile Vehicle Safety Inspection Station is a highly versatile and efficient mobile vehicle inspection line that can be used in a variety of scenarios. With its accurate and comprehensive analysis, it is ideal for vehicle testing and analysis in various industries. Its certification and quality standards ensure its reliability and durability.
Our Vehicle Testing line product comes with comprehensive technical support and services to ensure that you get the most out of your investment. Our team of experienced technicians is available to provide assistance with installation, troubleshooting, and maintenance. We also offer training to help you and your team maximize the efficiency and accuracy of the product. Additionally, we provide repair and calibration services to keep your equipment in optimal condition. Our goal is to ensure that our customers have a seamless experience with our product and can rely on it for accurate and reliable testing results.
The Vehicle Testing line product will be securely packaged in a sturdy cardboard box to ensure maximum protection during shipping. The product will be wrapped in bubble wrap and any empty spaces in the box will be filled with packing peanuts to prevent any movement during transit. The box will also be labeled with the product name, quantity, and any handling instructions.
The Vehicle Testing line product will be shipped within 1-2 business days of receiving the order. We offer both standard and expedited shipping options, and customers can choose their preferred method during the checkout process. All shipments will be tracked and customers will receive a tracking number via email. We currently only ship within the United States.
Q: What is the brand name of the vehicle testing product?
A: The brand name is Cartesykj.
Q: What certifications does the vehicle testing product have?
A: The vehicle testing product has certifications for ISO9001 and CE.
Q: Where is the vehicle testing product manufactured?
A: The vehicle testing product is manufactured in zhongshani, China.
Q: What are the payment terms for purchasing the vehicle testing product?
A: The payment terms for purchasing the vehicle testing product are L/C and T/T.
Q: What is the packaging for the vehicle testing product?
A: The vehicle testing product is packaged in plywood case.
