Place of Origin:
China
Brand Name:
cartesykj
Certification:
CE
Model Number:
MQW-5102

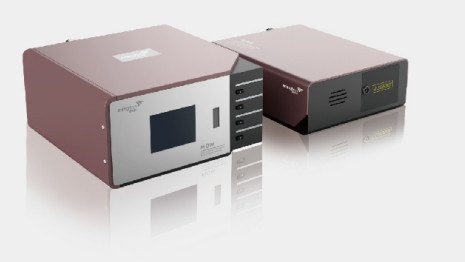

MQW-5102 Automobile exhaust analyzer Measure and analyze the components of motor vehicle exhaust
Product Introduction:
This product adopts NDIR-based measurement of CO₂ and NO. It is in compliance with GB 3847. It is suitable for motor vehicle inspection stations, automobile works, automobile repair workshops, etc.
Technical Parameters:
Measurement range and resolution
| Item | HC | CO | CO₂ | NO | O₂ |
|---|---|---|---|---|---|
| Unit | ×10⁻⁶ | ×10⁻² | ×10⁻² | ×10⁻⁶ | ×10⁻² |
| Measurement range | 0-9999 | 0.00-14.00 | 0.00-18.00 | 0-5000 | 0-25.00 |
| Resolution | 1 | 0.01 | 0.01 | 1 | 0.01 |
Zero drift
| Constituent | HC | CO | CO₂ | NO | O₂ |
|---|---|---|---|---|---|
| Absolute error | ± 4 × 10⁻⁶ | ± 0.02% | ± 0.3% | ± 25 × 10⁻⁶ | ± 0.1% |
Span drift
| Constituent | HC | CO | CO₂ | NO | O₂ |
|---|---|---|---|---|---|
| Absolute error | ± 4 × 10⁻⁶ | ± 0.02% | ± 0.3% | ± 25 × 10⁻⁶ | ± 0.1% |
| Relative error | ± 3% | ± 3% | ± 3% | ± 4% | ± 5% |
Repeatability
| Gas | Measurement range | Indication allowable error |
|---|---|---|
| HC | (0-2000) × 10⁻⁶ | ± 4 × 10⁻⁶ / ± 3% |
| HC | (2001-5000) × 10⁻⁶ | / ± 5% |
| HC | (5001-9999) × 10⁻⁶ | / ± 10% |
| CO | (0.00-10.00) × 10⁻² | ± 0.02 × 10⁻² / ± 3% |
| CO | (10.01-14.00) × 10⁻² | / ± 5% |
| CO₂ | (0.00-16.00) × 10⁻² | ± 0.03 × 10⁻² / ± 3% |
| CO₂ | (16.01-18.00) × 10⁻² | / ± 5% |
| NO | (0-5000) × 10⁻⁶ | ± 25 × 10⁻⁶ / ± 4% |
| O₂ | (0.0-25.0) × 10⁻² | ± 0.1 × 10⁻² / ± 5% |
Note: Either meeting the absolute error or relative error criteria in the table is acceptable.
Indication error
| Gas | Measurement range | Indication allowable error |
|---|---|---|
| HC | (0-1400) × 10⁻⁶ | ± 3 × 10⁻⁴ / ± 2% |
| HC | (1401-2000) × 10⁻⁶ | / ± 3% |
| CO | (0.00-7.00) × 10⁻² | ± 0.02 × 10⁻² / ± 2% |
| CO | (7.01-10.00) × 10⁻² | / ± 3% |
| CO₂ | (0.0-10.00) × 10⁻² | ± 0.3 × 10⁻² / ± 2% |
| CO₂ | (10.1-16.00) × 10⁻² | / ± 3% |
| NO | (0-5000) × 10⁻⁶ | ± 20 × 10⁻⁶ / ± 3% |
| O₂ | (0.0-25.0) × 10⁻² | ± 0.1 × 10⁻² / ± 3% |
Note: Either meeting the absolute error or relative error criteria in the table is acceptable.
Other parameters
| Parameter | Value |
|---|---|
| Sensor response time | HC, CO, CO₂(T₉₀): 3.5s ; NO(T₉₀): 4.5s |
| NDIR radiation intensity critical point | 0.0279W/sr |
| Pre-heating time | 30min |
| Environmental conditions | |
| Pressure | 75.0 kPa-110.0kPa |
| Temperature | -5℃-45℃ |
| Humidity | ≤ 95% |
| Operating voltage | AC 220V ± 22V, 50Hz ± 1Hz |
| Power consumption | Main instrument: 110w |
| Dimensions (L×W×H) | Main instrument: (550×485×230)mm³ |
| Instrument weight | Main instrument: Approximately 15kg |
