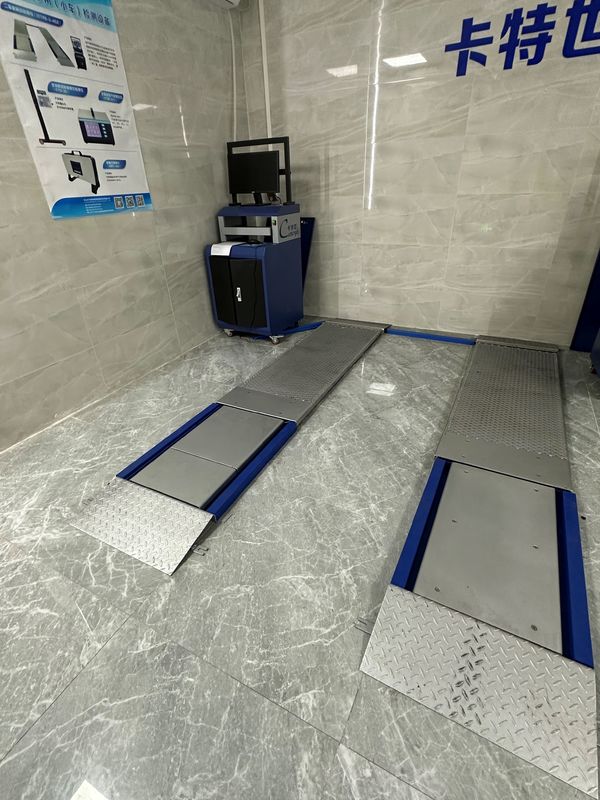

Car Test Line Vehicle inspection equipment test the brake force 4CTPB-3-4 Ultra flat plate brake tester

Car Test Line Vehicle inspection equipment test the brake force 4CTPB-3-4 Ultra flat plate brake tester



• No need for concrete foundation installation, small occupation of land, convenient installation and commissioning.
• No need for 380V power supply, low operating cost, energy saving, saving investment
• The plate structure of plate brake tester can be combined in many ways to be suitable for vehicle types and various wheelbases
• The design, process and manufacture of the plate of flat brake tester comply with the latest national standards GB21681 and GBT7258
• With imported high-precision sensor, fast response, and accurate test. The latest product concept, ultra-thin.
• Motor vehicle braking on board, the simulation technology is closer to the actual road conditions, and the test result is more real and reliable
• System with a variety of online interface, can match headlight tester and the gas analyzer to form such as multi-function integrated performance test line
• Four plates combination can be adopted, which can make the front and rear wheels of the vehicle test at the same time, accurately reflect the brake synchronization of the front and rear vehicles, truly test the brake force characteristic curve and the brake coordination time of the whole vehicle
•
• Technical parameters

• Model	2CTPB-3-4	2CTPB-3-3	4CTPB-3-4	2CTPB-10G	2CTPBH-10
  Max. axle-load (kg)	3000kg	3000kg	3000kg	10000kg	10000kg
  Braking test range (kN)	10kN	10kN	10kN	35kN	35kN
  Sideslip Test Scope (m/km)	0-±10m/km	N/A	0-±10m/km	0-±15m/km	N/A
  Braking force error value	≤±3%	≤±3%	≤±3%	≤±3%	≤±3%
  Sideslip test precision (m/km)	≤0.2m/km	N/A	≤0.2m/km	≤0.2m/km	N/A
  Axle load error value	≤±2%	≤±2%	≤±2%	≤±2%	≤±2%
  Weighing plate size	610*1500(width*length)	610*1500(width*length)	610*1500(width*length)	1000*1800(width*length)	1000*1800(width*length)
  Combination	2 plates	2 plates	4 plates	2 plates(4 plates optional)	2 paltes(4 plates optional)
  Testing speed (km/h)	5-10km/h	5-10km/h	5-10km/h	5-10km/h	5-10km/h
  The power supply	220v 300w	220v 300w	220v 300w	220v 300w	220v 300w
  Plate size (mm)	2554×610×50	1760×610×50	4314×610×50	2854×1000×58(2 paltes)	2440×1112×100

•
•
