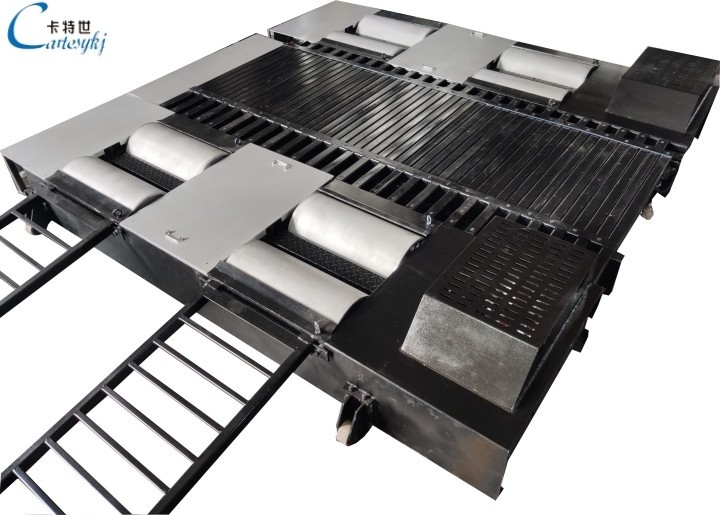

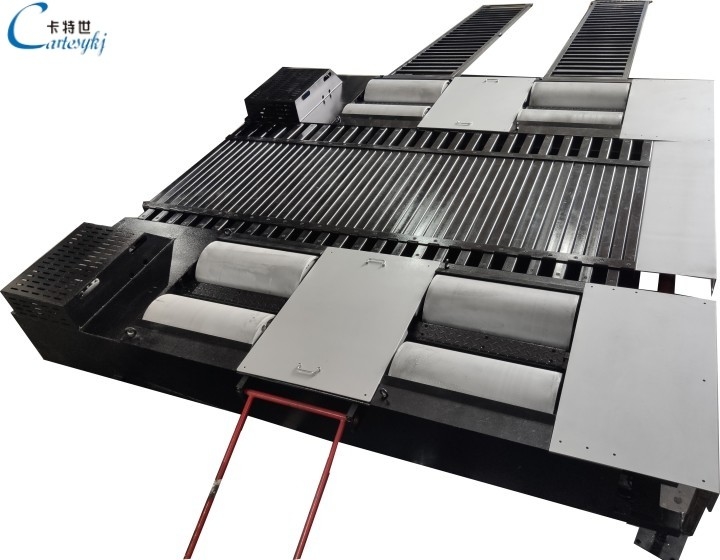

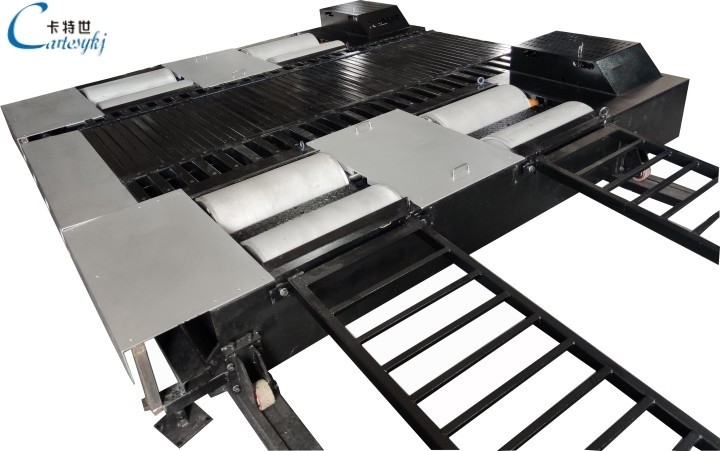

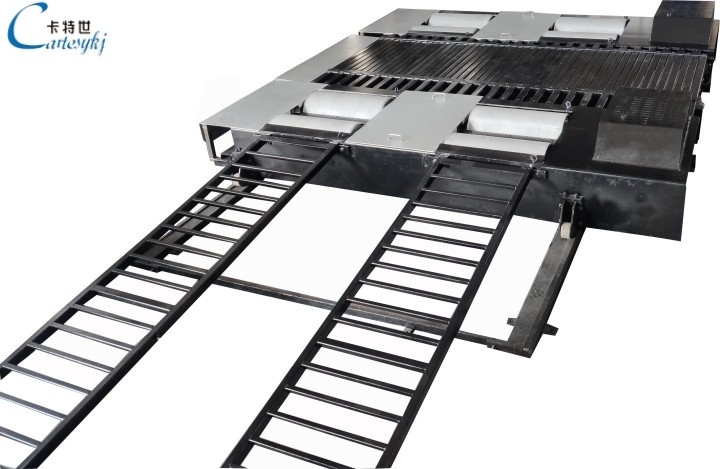

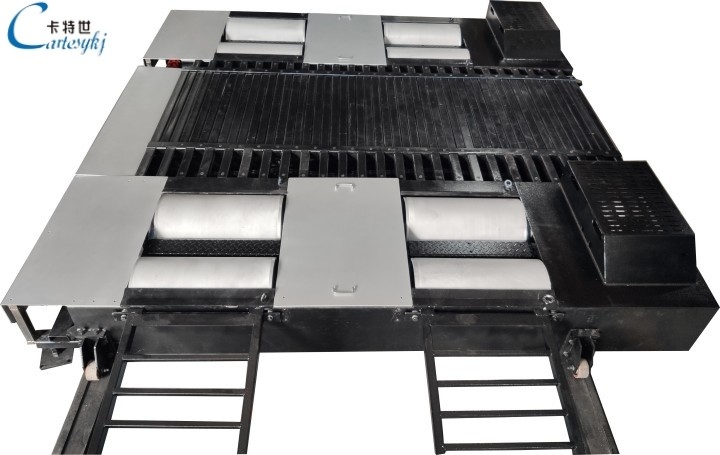

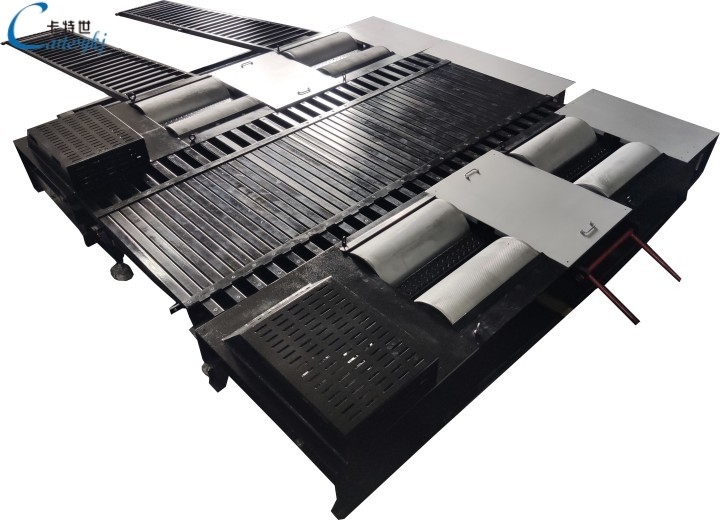

Cartesykj 4WD Horse Power Machine Automotive Power Performance And Chassis Dynamometer Machine 2000hp 2 eddy currents adjustable wheelbase

Product description:

The 4WD horsepower machine, also known as a 4-wheel drive chassis dynamometer, is a high-precision testing device designed to measure and evaluate the power output, torque, acceleration, and overall performance of vehicles equipped with all-wheel drive (AWD) or four-wheel drive (4WD) systems. It is widely used in automotive research, development, tuning, quality control, and performance benchmarking.

• 4WD Capability: Synchronously drives both front and rear axles to accurately simulate real-road driving conditions for AWD/4WD vehicles.
• Horsepower & Torque Measurement: Accurately measures wheel horsepower (WHP), torque (Nm), and engine performance under various load and speed conditions.
• Chassis Testing: Tests the entire drivetrain (engine → transmission → differential → wheels) under dynamic load.
• Roller Bed Platform: Equipped with high-strength, low-friction rollers capable of supporting high-speed rotations and load simulations.
• Data Acquisition System: Real-time data logging and analysis of speed, RPM, power, torque, exhaust emissions, and fuel consumption.
• Load Simulation: Supports steady-state and dynamic loading using eddy current or AC motor-based loading systems.
• Safety & Control: Includes automatic synchronization, vehicle restraint systems, cooling fans, and emergency stop systems.

project Item	CTDCG-3E
Rated bearing mass of kg Rated Axle Load	10000kg
Maximum test total mass	3500Kg;
testable horsepower hp Test house power	2000ph
maximum drawbar pull KN Max. traction	≥25
Drum diameter and length of mm Roller diameter × length	Φ373×700mm
Drum inner distance and outer distance are mm Inner distance of roller × outer distance	700×2100mm
The center of the drum is mm Distance between roller centers	437mm
Maximum test speed of km m / h Max.test speed	≥260km/h
Detect wheelbase range The Test range of wheelbase
Speed indication error	≤±1%
Error in torque representation	≤±2%
Power indication error	≤±2%
weight of equipment	1800Kg;
air supply Gas source	≥0.8Mpa
supply voltage	AC220V,50Hz
Fan voltage	AC380V,50Hz
Working environment temperature: (℃)	0-40
Benchmark inertia amount of kg Reference inertia	908kg    ±18kg
device for power absorption Power absorption device	Air-cooled eddy current machine Air cooled eddy current machine
Rated absorption torsion Rated Absorbed Torque	1600N.m





Wooden packing
