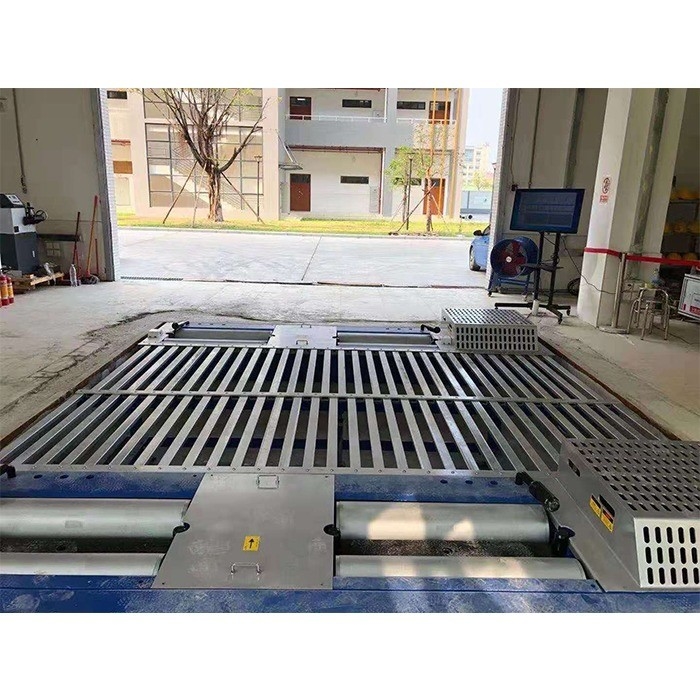

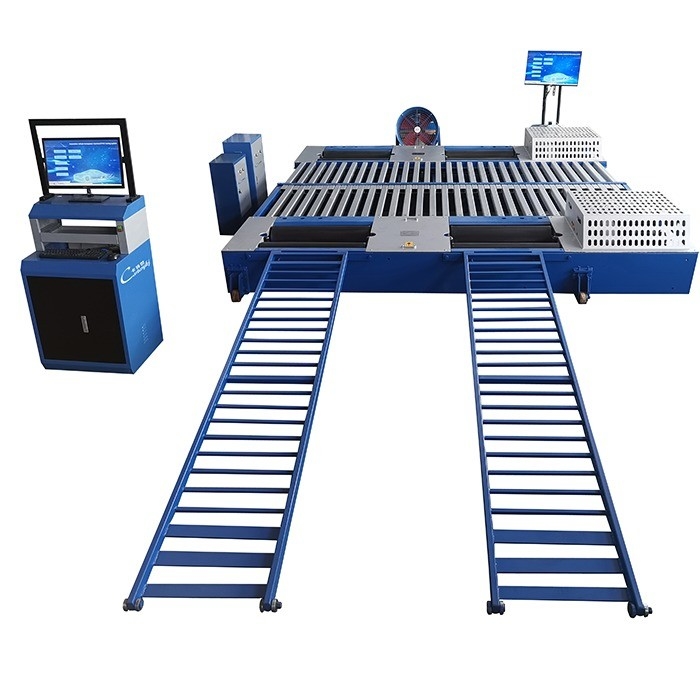

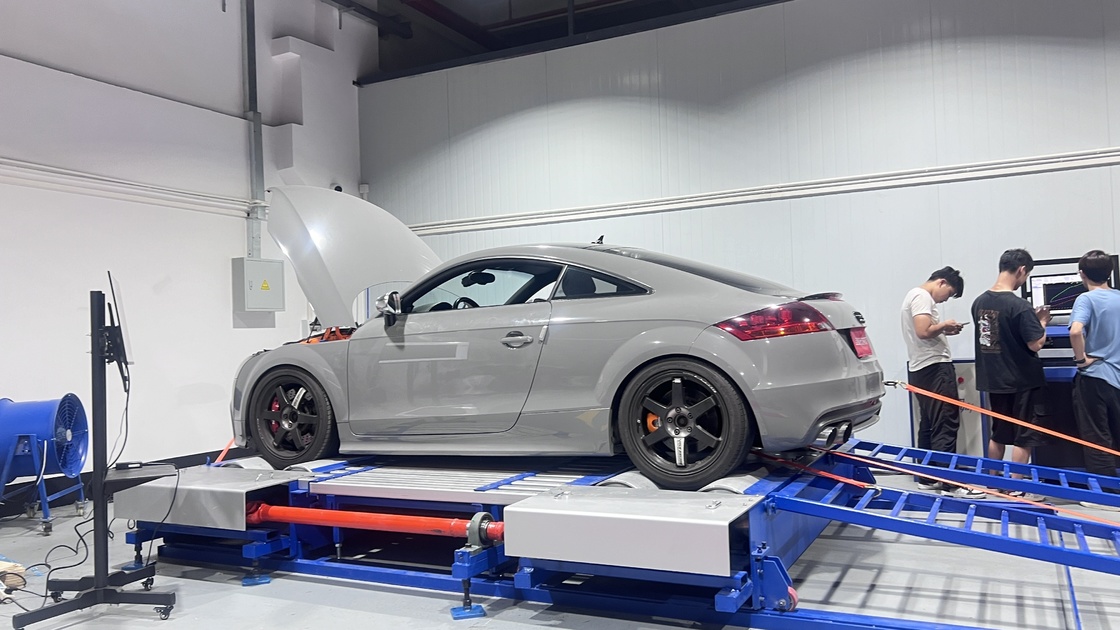

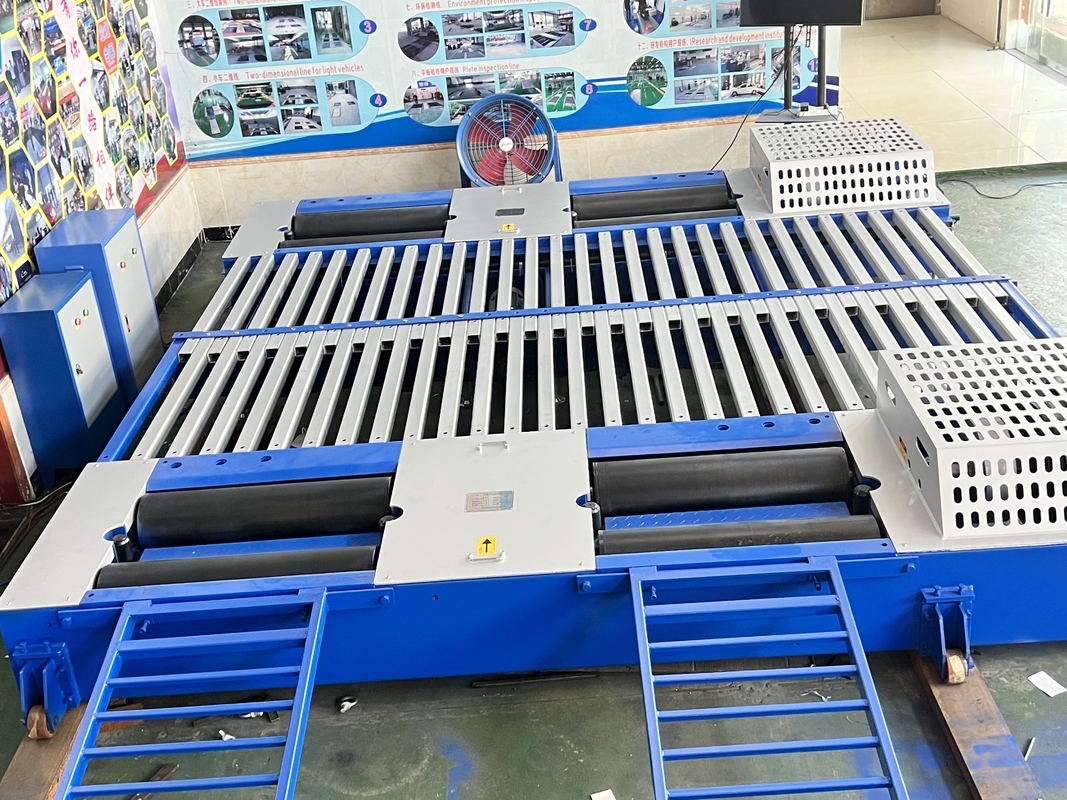

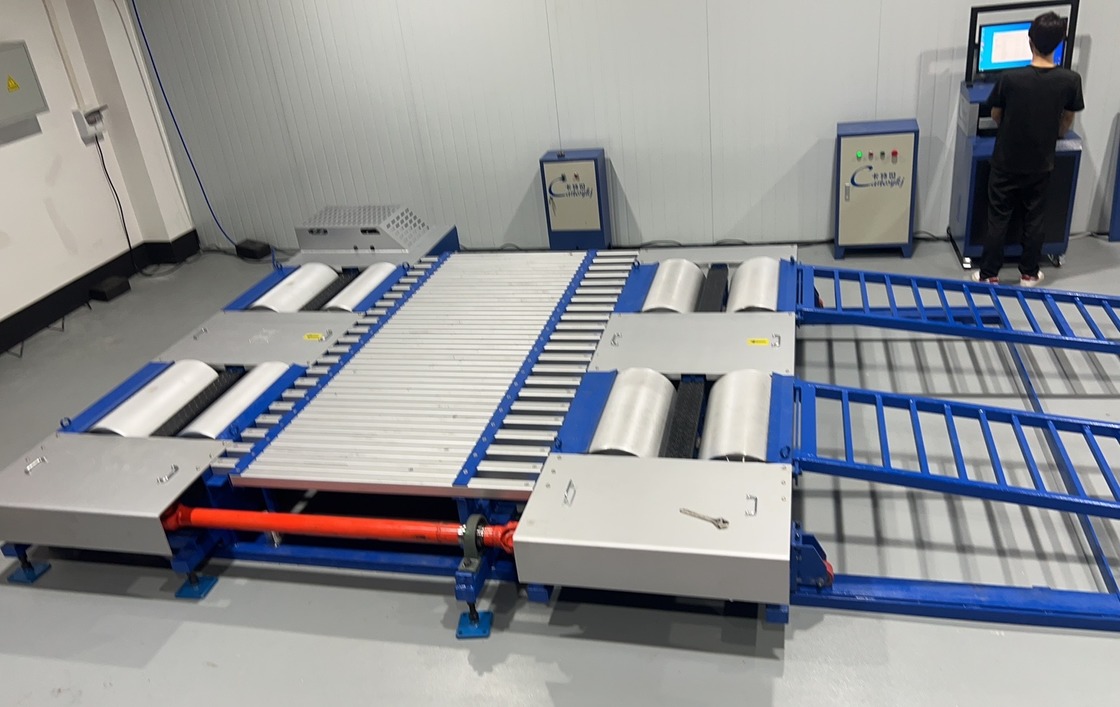

CTDCG-3-4WD 4WD Car Vehicle Test Lane Vehicle Chassis Dynamometer horse power machine one eddy current 1000hp one free roller

Product description:

The 4WD horsepower dynamometer is specially used to measure the chassis dynamic performance of the2WD and 4WD vehicles. It can not only accurately measure the dynamic performance at each speed, but also simulate the road to carry out the road test of routine and multi-road of the vehicles, and can also be used for vehicle refitting and ECU debugging and calibration , etc.

project Item	CTDCG-3E
Rated bearing mass of kg Rated Axle Load	10000kg
Maximum test total mass	3500Kg;
testable horsepower hp Test house power	1000ph
maximum drawbar pull KN Max. traction	≥25
Drum diameter and length of mm Roller diameter × length	Φ373×700mm
Drum inner distance and outer distance are mm Inner distance of roller × outer distance	700×2100mm
The center of the drum is mm Distance between roller centers	437mm
Maximum test speed of km m / h Max.test speed	≥260km/h
Detect wheelbase range The Test range of wheelbase
Speed indication error	≤±1%
Error in torque representation	≤±2%
Power indication error	≤±2%
weight of equipment	1800Kg;
air supply Gas source	≥0.8Mpa
supply voltage	AC220V,50Hz
Fan voltage	AC380V,50Hz
Working environment temperature: (℃)	0-40
Benchmark inertia amount of kg Reference inertia	908kg   ±18kg
device for power absorption Power absorption device	Air-cooled eddy current machine Air cooled eddy current machine
Rated absorption torsion Rated Absorbed Torque	1600N.m

Wooden packing

1. who are we?
   We are based in Guangdong, China, start from 2011,sell to Domestic Market(50.00%),South Asia(10.00%),Africa(10.00%),Eastern Europe(10.00%),Oceania(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Northern Europe(3.00%),North America(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
   Always a pre-production sample before mass production;
   Always final Inspection before shipment;
3. what can you buy from us?
   Vehicle Sideslip Tester,Roller brake tester with axle load,flat plate test line,Automobile power performance and Chassis dynamometer,Vehicle suspension performance Tester
4. why should you buy from us not from other suppliers?
   Multi design of overall system scheme Site layout planning and Technological Consulting Systematic site installation and training Online daily maintenance and technical support
5. what services can we provide?
   Accepted Delivery Terms: FOB,CFR,EXW；
   Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
   Accepted Payment Type: T/T,PayPal,Cash;
   Language Spoken:English,Chinese
