Vehicle Repair Tool Popular Auto Transmission Flush Machine Model ATF-20DT

Vehicle Repair Tool Popular Auto Transmission Flush Machine Model ATF-20DT

Place of Origin:

Guangdong, China

Brand Name:

Cartesy

Contact Us
Request A Quote
Product Details
Warranty:
1 Years
Color:
Blue
Product Name:
Gearbox Oil Exchanger
Type:
Auto Maintenance Tool
Function:
Car Repair
Application:
Vehicle Repair Tool
Capacity:
20L
Material:
Metal
Payment Term:
1) T/T
Port:
Zhongshan
Payment & Shipping Terms
Price
$245.00 - $265.00/sets
Packaging Details
Carton
Supply Ability
1500 Set/Sets per Month
Product Description

OEM for more than 200 companies all around the world with turnover 1,500 sets each month!





Vehicle Repair Tool Popular Auto Transmission Flush Machine Model ATF-20DT 0

Vehicle Repair Tool Popular Auto Transmission Flush Machine Model ATF-20DT 1Vehicle Repair Tool Popular Auto Transmission Flush Machine Model ATF-20DT 2Vehicle Repair Tool Popular Auto Transmission Flush Machine Model ATF-20DT 3





Specifications

Item

Description

Functions

Remove, clean, and replace fluid from most types and models of automatic gearboxes, transmissions, hydraulic torque transmissions, gearbox radiators and radiation pipelines

Power supply

12V

Pump power

250W

Oil Inlet and Return Hoses



3-(2x) 126 (L) x1/2(dia.) inches (1-red, 1-black) (1) 137(L) x1/2(dia.) inches (red); All with male and female quick couplers, 300 PSL (max.) rated

Pressure Gauges

Both 2-3/4 (dia.) inches;0~100 PSI, 20 PSI increments; 0~7 Bar, in 1 and 1/10 Bar increments

Filter

Auto Oil Filter, 4-3/4(L) x 3(dia.) inches; 17mm x 1.7 female threads

Fluid Capacity

2tanks (for new and old fluids), 8 gallons per tank

Weight

130lbs

































 Why should we use ATF machine?



The structure of ATF machine is extremely tight and complex. Only 25% of waste oil can be changed if using traditional way. Metal scraps, Oil sludge and other residues still in the gearbox will cause secondary pollution mixing with new oil, which make gearbox accelerating slow, changing gear with vibration, and then overheating, oil consumption big and other abnormal phenomena, if it’s ignored, it is easy to fail.

This ATF machine is designed according to the world's latest process. Combining the recycling and cooling pressure of gearbox and the output pressure of this machine, it’s filled with new oil when discharging waste oil. This kind oil exchanging which make new oil filling and waste discharging occurring synchronously not only ensures the safety and efficiency, but also makes gearbox in completely maintenance. Meanwhile the ATF machine adopts adjustable electric pressure design which allow the pressure can be adjusted according to the needs of different models, easy to operate.

 The ATF machine can finish the oil recharging and cleaning of gearbox ,hydraulic converter, gearbox radiator in 20 minutes, which not only can completely remove metal scraps, oil sludge, but also make oil changing ratio to nearly 100% to make sure gearbox is always new.







Adapters List

Vehicle Repair Tool Popular Auto Transmission Flush Machine Model ATF-20DT 4













Vehicle Repair Tool Popular Auto Transmission Flush Machine Model ATF-20DT 5

Optional Special 82 PCS adapter(connector)



Vehicle Repair Tool Popular Auto Transmission Flush Machine Model ATF-20DT 6



Vehicle Repair Tool Popular Auto Transmission Flush Machine Model ATF-20DT 7 Vehicle Repair Tool Popular Auto Transmission Flush Machine Model ATF-20DT 8Vehicle Repair Tool Popular Auto Transmission Flush Machine Model ATF-20DT 9

Vehicle Repair Tool Popular Auto Transmission Flush Machine Model ATF-20DT 10

OEM for more than 100 companies around the world



Vehicle Repair Tool Popular Auto Transmission Flush Machine Model ATF-20DT 11Vehicle Repair Tool Popular Auto Transmission Flush Machine Model ATF-20DT 12

Vehicle Repair Tool Popular Auto Transmission Flush Machine Model ATF-20DT 13

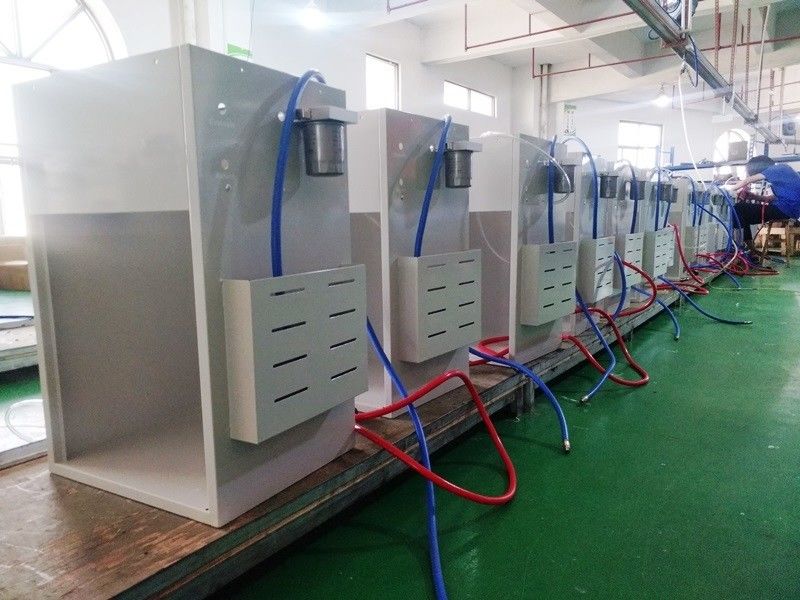

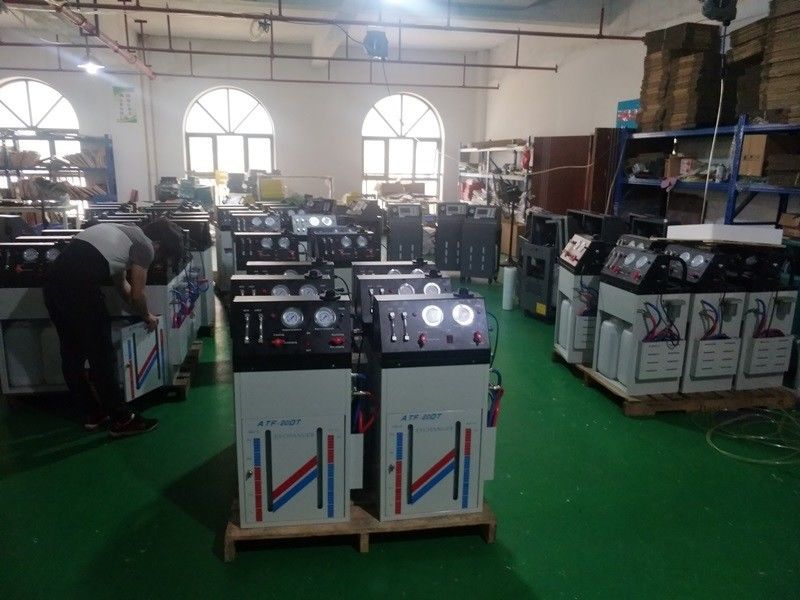

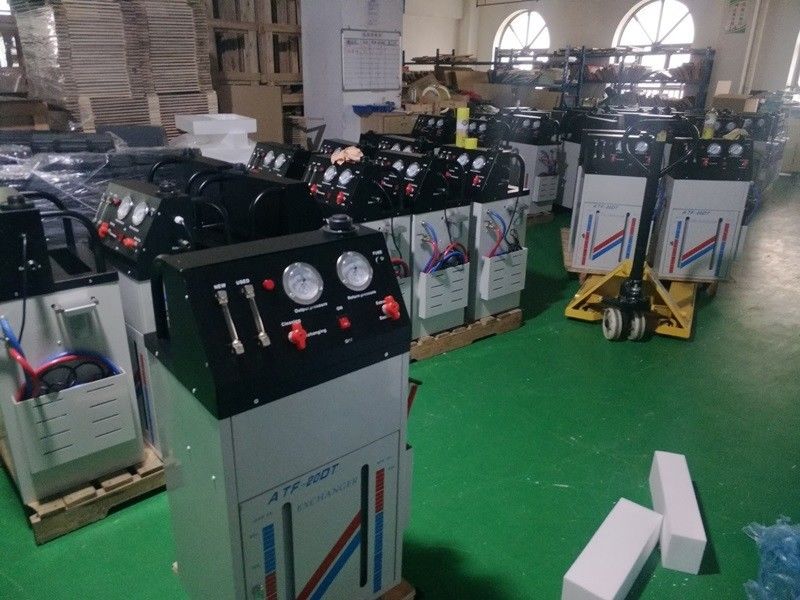

Workshop



Vehicle Repair Tool Popular Auto Transmission Flush Machine Model ATF-20DT 14

Package
